Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
Choose resistors with a tolerance of 1% or better to ensure accurate gain and bandwidth. The feedback network resistors should be chosen to achieve the desired gain and bandwidth, while also considering the op-amp's input impedance and output drive capability. Using different values can affect the op-amp's stability, noise performance, and distortion characteristics.
The THS6052ID can drive up to 1nF of capacitive load, but this can affect the op-amp's stability and cause oscillations. To ensure stability, use a series resistor (Rs) to isolate the capacitive load, and choose Rs to be at least 10 times the op-amp's output impedance.
The THS6052ID's input bias current can cause voltage offsets and affect the circuit's accuracy. To minimize its effect, use a high-impedance input source, and consider using a bias current cancellation technique, such as a current- feedback amplifier or a bias current compensation network.
The THS6052ID has a maximum junction temperature (TJ) of 150°C. Ensure reliable operation by keeping the device within its recommended operating temperature range, using a heat sink if necessary, and avoiding thermal gradients that can cause uneven heating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6052ID Overview

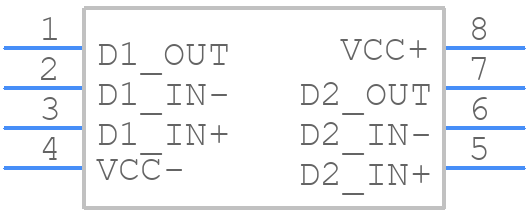

Use the download button to access the THS6052ID schematic symbol, PCB footprint, and 3D model.
