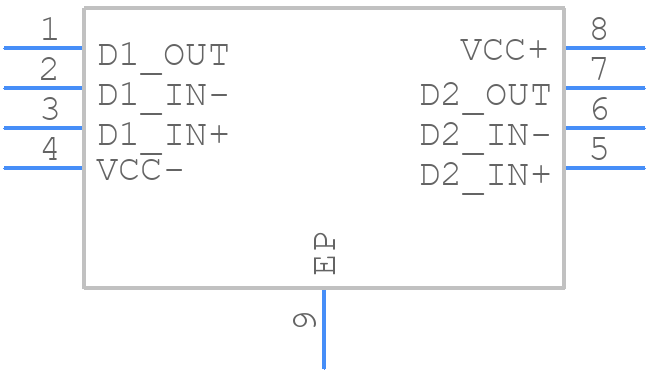

THS6092IDDAR - Texas Instruments

THS6092IDDAR Details

• Manufacturer Part Number:

  THS6092IDDAR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOP-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES AT 5V TO 14V SINGLE SUPPLY

• Differential Output:

  NO

• Driver Number of Bits:

  2

• High Level Input Current-Max:

  0.0001 A

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  LINE DRIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.89 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  2

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  1.5 V

• Output Characteristics:

  DIFFERENTIAL

• Output Peak Current Limit-Nom:

  0.275 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLSOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.68 mm

• Supply Current-Max:

  10.5 mA

• Supply Voltage-Max:

  7 V

• Supply Voltage-Min:

  2.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  7 V

• Supply Voltage1-Min:

  2.5 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
