A good PCB layout for the THS6212IRHFR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output is properly terminated, and the input is properly biased. Additionally, consider adding a small capacitor (e.g., 10nF) in parallel with the feedback resistor to improve stability.
The maximum power dissipation of the THS6212IRHFR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
The THS6212IRHFR is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and derate the power dissipation accordingly to ensure reliable operation.
The THS6212IRHFR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6212IRHFR Overview

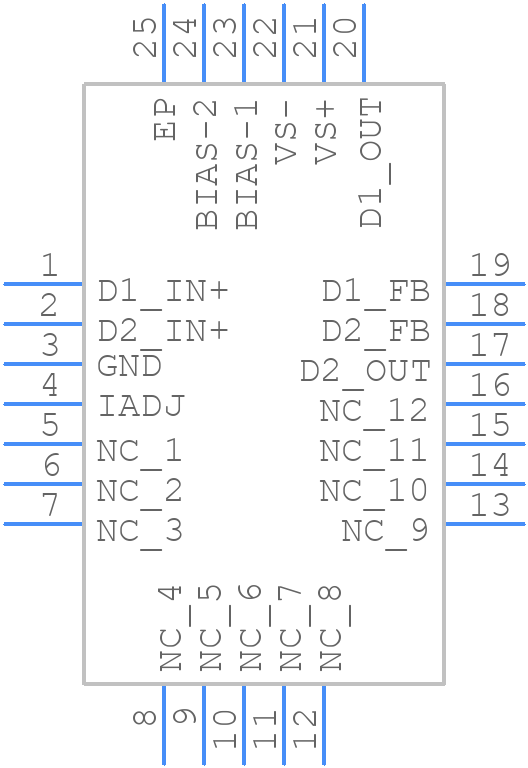

Use the download button to access the THS6212IRHFR schematic symbol, PCB footprint, and 3D model.
