Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the signal source and use a common-mode filter to reduce EMI.
To optimize the THS6214IRHFR for a specific application, it's essential to understand the signal characteristics, such as frequency, amplitude, and impedance. Then, adjust the device's gain, bandwidth, and output impedance to match the application requirements. Additionally, consider the power supply and decoupling requirements to ensure stable operation.
The THS6214IRHFR has an operating temperature range of -40°C to 125°C. However, it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in extreme temperature conditions.
To troubleshoot common issues with the THS6214IRHFR, start by checking the power supply and decoupling, ensuring that the device is properly biased and decoupled. Then, verify the signal integrity, checking for signal reflections, ringing, or distortion. Finally, review the PCB layout and component selection to ensure that they meet the device's requirements.
Yes, the THS6214IRHFR can be used in a non-inverting configuration. However, it's essential to follow the datasheet guidelines for non-inverting amplifier configurations, including the recommended resistor values and PCB layout considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6214IRHFR Overview

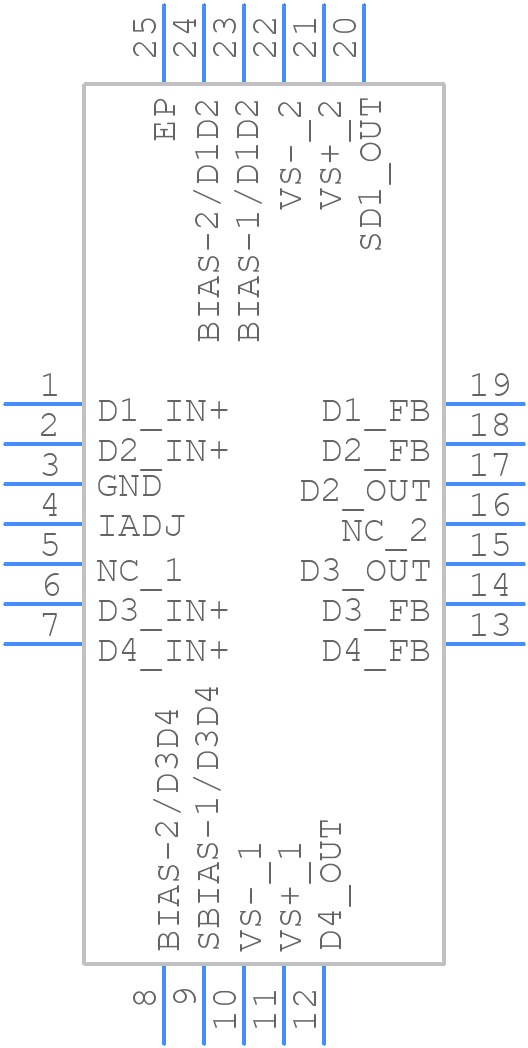

Use the download button to access the THS6214IRHFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS62,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
