Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the signal source and use a common mode choke to filter out noise.
The THS6222IRGTR requires a dual supply voltage of ±5V to ±15V. Ensure that the voltage supplies are well-regulated and decoupled with capacitors close to the device. Also, make sure to follow the recommended biasing scheme in the datasheet, which includes setting the output common-mode voltage to mid-supply (VCC-/2) and using a voltage divider to set the input common-mode voltage.
The THS6222IRGTR is a high-speed amplifier capable of supporting data rates up to 2.5 Gbps. However, the actual data rate limitation will depend on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity simulations and testing to determine the maximum data rate that can be achieved in a specific design.
The THS6222IRGTR has a high common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR), which helps to reject noise and interference. Additionally, it's recommended to use external filters, such as common-mode chokes or RC filters, to further reduce noise and interference. Also, ensure that the device is properly decoupled and that the PCB layout is designed to minimize noise coupling.
The THS6222IRGTR has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to follow proper thermal management strategies, such as using a heat sink, thermal vias, or thermal pads. Also, ensure that the device is operated within the recommended operating temperature range and that the PCB design allows for good airflow and heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6222IRGTR Overview

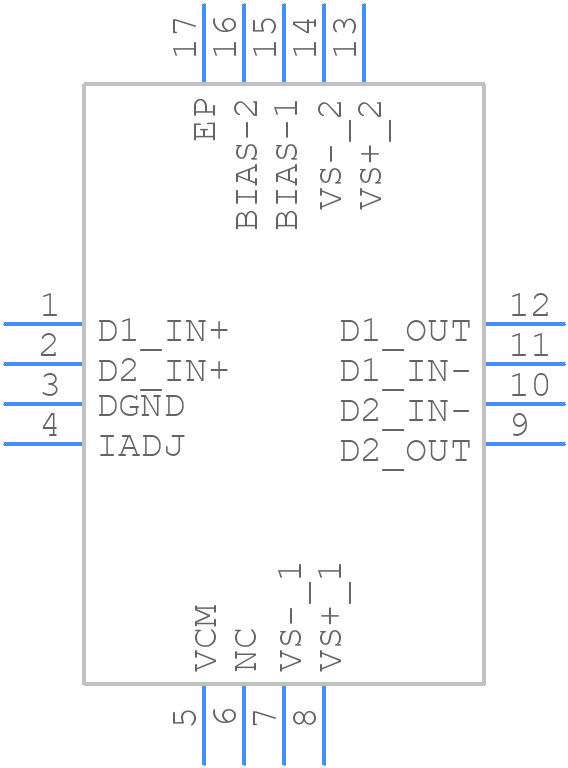

Use the download button to access the THS6222IRGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS62,
or try a keyword search, such as Other Consumer ICs
