A good PCB layout for the THS6222IRHFR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The input capacitor should be a low-ESR ceramic capacitor with a value between 10nF to 100nF. The output capacitor should be a low-ESR ceramic or film capacitor with a value between 10uF to 100uF. The capacitor values and types may vary depending on the specific application and frequency range.
The maximum power dissipation of the THS6222IRHFR is 1.4W. However, the actual power dissipation will depend on the operating conditions, such as the supply voltage, output current, and ambient temperature.
To ensure stability, follow the recommended PCB layout, use the recommended input and output capacitors, and ensure that the device is operated within its recommended operating conditions. Additionally, a stability analysis using simulation tools or a network analyzer can help identify potential stability issues.
The THS6222IRHFR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's power dissipation and ensure proper thermal management to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6222IRHFR Overview

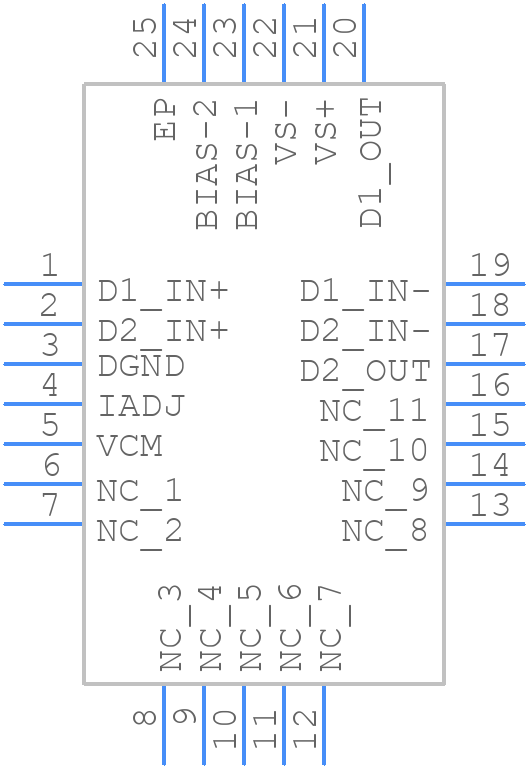

Use the download button to access the THS6222IRHFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS62,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
