THS6226IRHBT - Texas Instruments

Description: Class H, Fixed Gain VDSL2 Dual Port Low-Power xDSL Line Driver

Download THS6226IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

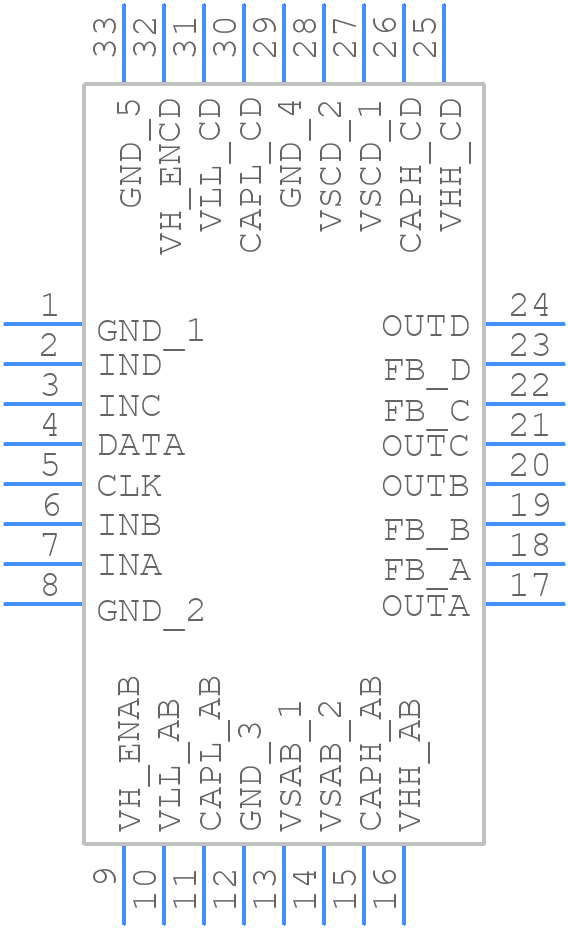

Symbol
THS6226IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS6226IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom
3D Models
THS6226IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom

THS6226IRHBT Details

  • Manufacturer Part Number:

    THS6226IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CLASS AB MODE SUPPLY 10 TO 15V

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    12.5 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

THS6226IRHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS6226IRHBT evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The input termination resistors depend on the specific application and signal source. TI provides a termination resistor calculator tool to help select the correct values based on the signal frequency, amplitude, and source impedance.
  • The THS6226IRHBT is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and power consumption at higher temperatures to ensure reliable operation.
  • Yes, the THS6226IRHBT can be used in a differential input configuration, but it requires a specific configuration of the input pins and external components. TI provides application notes and design guides to help with this configuration.
  • To ensure EMI compliance, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components. TI also provides EMI-related application notes and design guides.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS6226IRHBT Overview

Use the download button to access the THS6226IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS62, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
