SHUTDOWN CONTROL, DIGITALLY PROGRAMMABLE GAIN, -22 DB TO 20 DB GAIN/ATTENUATION RANGE
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
6.5 mm
Moisture Sensitivity Level:
2
Neg Supply Voltage-Max (Vsup):
-16.5 V
Neg Supply Voltage-Min (Vsup):
-4.5 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
9 mA
Supply Voltage-Max (Vsup):
32 V
Supply Voltage-Min (Vsup):
9 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
THS7001CPWP Frequently Asked Questions (FAQs)
A good PCB layout for the THS7001CPWP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the output stage. Also, ensure that the input and output capacitors are properly bypassed, and the device is operated within its recommended operating conditions.
The maximum power dissipation of the THS7001CPWP is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this can be derated based on the operating temperature and thermal resistance.
The THS7001CPWP is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper thermal management to ensure reliable operation in high-temperature environments.
To protect the THS7001CPWP from overvoltage and overcurrent conditions, use a voltage regulator or a voltage limiter at the input, and add overcurrent protection circuitry such as a current sense resistor and a shutdown circuit. Additionally, ensure that the device is operated within its recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7001CPWP Overview

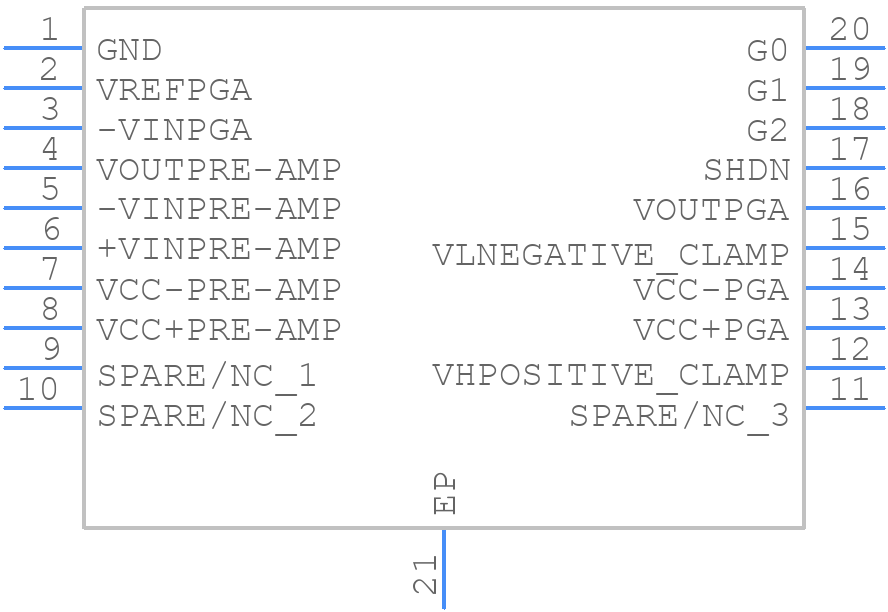

Use the download button to access the THS7001CPWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS70,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
