SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Slew Rate-Nom:
85 V/us
Supply Current-Max:
18 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
100000
Voltage Gain-Max:
10
Voltage Gain-Min:
17782.794
Wideband:
NO
THS7002IPWP Frequently Asked Questions (FAQs)
A good PCB layout for the THS7002IPWP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the output stage. Also, ensure that the input and output capacitors are properly bypassed, and the device is operated within its recommended operating conditions.
The maximum power dissipation of the THS7002IPWP is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this can be derated based on the operating temperature and thermal resistance.
The THS7002IPWP is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper thermal management to ensure reliable operation in high-temperature environments.
To protect the THS7002IPWP from overvoltage and overcurrent, use a voltage regulator or a voltage limiter at the input, and add overcurrent protection circuitry such as a current sense resistor and a comparator. Additionally, ensure that the device is operated within its recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7002IPWP Overview

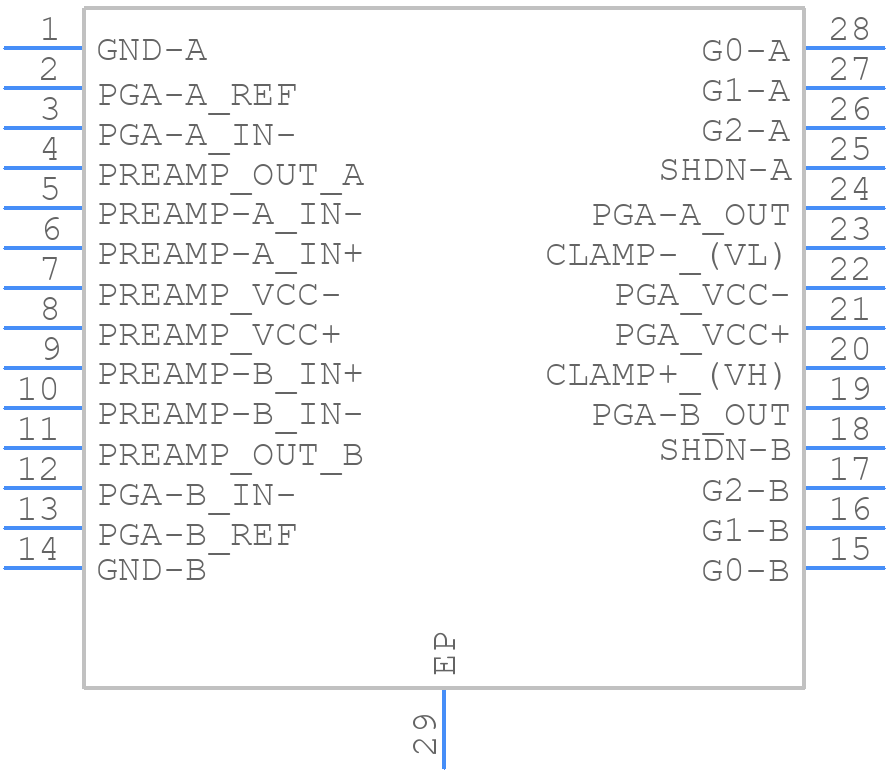

Use the download button to access the THS7002IPWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS70,
or try a keyword search, such as Operational Amplifiers
