THS7303PWR - Texas Instruments

Description: 3-Ch Low Power Video Amp w/I2C Control, Select Filters +6db Gain 2:1 Input MUX

Download THS7303PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

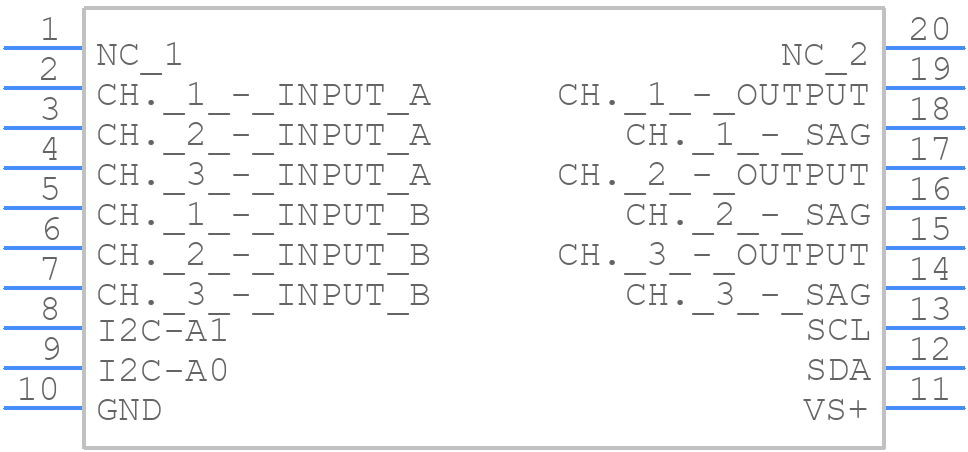

Symbol
THS7303PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS7303PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
THS7303PWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

THS7303PWR Details

  • Manufacturer Part Number:

    THS7303PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    41000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    6 dB

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    24.6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

THS7303PWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS7303PWR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The choice of gain resistors depends on the desired gain and bandwidth of the amplifier. TI provides a gain resistor calculator tool to help with the selection. Additionally, the datasheet provides guidelines for selecting the optimal gain resistors.
  • The maximum power dissipation of the THS7303PWR is 2.5W. To ensure you don't exceed it, calculate the power dissipation based on the output current and voltage, and ensure the device is properly heat-sinked. TI provides a thermal design calculator to help with this calculation.
  • To filter out noise and EMI, use a combination of bypass capacitors, ferrite beads, and shielding. TI provides guidelines for EMI filtering in the datasheet and application notes. Additionally, consider using a common-mode filter or a differential filter to reduce noise.
  • The recommended operating voltage range for the THS7303PWR is 5V to 12V. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS7303PWR Overview

Use the download button to access the THS7303PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73, or try a keyword search, such as Audio/Video Amplifiers
