Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output filter components (Rf, Cf, and Lf) should be selected based on the desired cutoff frequency, output impedance, and signal attenuation. TI provides a filter design tool and application notes (e.g., SLVAE03) to help with component selection and optimization.
The maximum power dissipation of the THS7313PW is 1.4W. To ensure it doesn't overheat, follow the thermal management guidelines in the datasheet, including using a heat sink, keeping the device away from heat sources, and ensuring good airflow.
Yes, the THS7313PW can be used in a differential output configuration. However, this requires additional external components and careful layout to maintain common-mode rejection. TI provides application notes (e.g., SLVAE02) and design tools to help with differential output design.
TI provides troubleshooting guides and application notes (e.g., SLVAE01) that cover common issues and their solutions. Additionally, the THS7313PW datasheet includes a section on troubleshooting and error detection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7313PW Overview

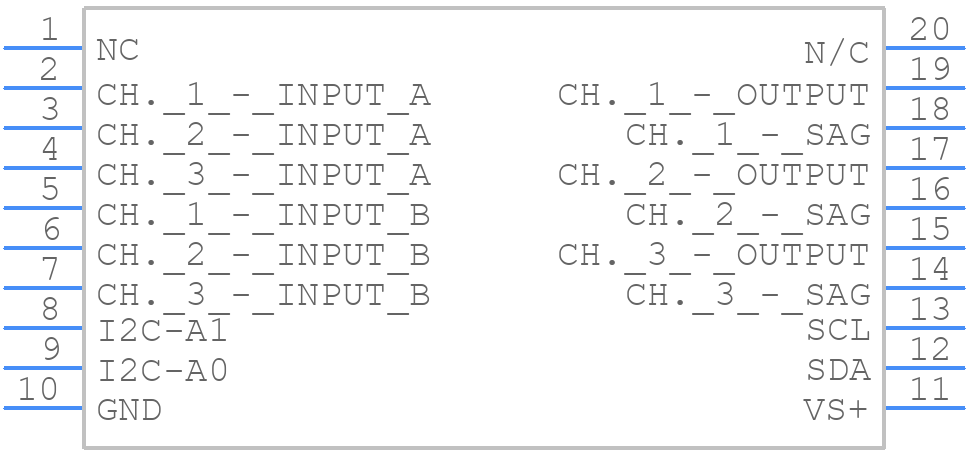

Use the download button to access the THS7313PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
