A good PCB layout for the THS7314D involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the THS7314D for low power consumption, use the lowest possible supply voltage, disable the internal bias when not in use, and use the power-down mode when the device is not in operation. Additionally, consider using a lower frequency clock input and optimizing the output load impedance.
The recommended clock input frequency range for the THS7314D is between 10 MHz and 100 MHz. However, the device can operate with clock frequencies up to 200 MHz, but with reduced performance and increased power consumption.
To ensure the THS7314D is operating within its recommended operating conditions, monitor the device's junction temperature, supply voltage, and output current. Also, ensure that the input and output signals are within the recommended voltage ranges and that the device is not exposed to excessive noise or EMI.
The THS7314D has built-in ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7314D Overview

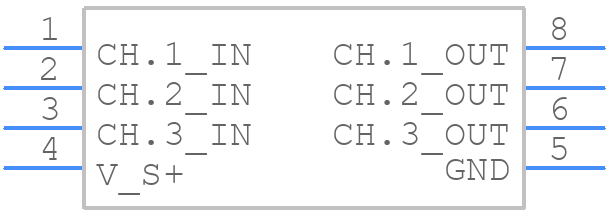

Use the download button to access the THS7314D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Buffer Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
Suggested Parts
If you searched for THS7314D, you might also be interested in these parts:
