Texas Instruments provides a recommended PCB layout in the THS7314DG4 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of output filter components depends on the specific application requirements, such as the desired cutoff frequency, impedance, and attenuation. Texas Instruments provides a filter design tool and application notes to help engineers select the optimal components for their design.
The maximum power dissipation of the THS7314DG4 is dependent on the operating conditions, such as supply voltage, output current, and ambient temperature. Engineers should ensure proper thermal design, including heat sinking and airflow, to keep the device within its recommended operating temperature range.
Yes, the THS7314DG4 can be used in a differential output configuration, but it requires additional external components and careful layout to maintain common-mode rejection and minimize noise. Texas Instruments provides application notes and design examples to help engineers implement differential output configurations.
Troubleshooting common issues with the THS7314DG4 often involves checking the PCB layout, component values, and supply voltage. Engineers should also consult the datasheet and application notes for guidance on debugging and optimizing their design. Texas Instruments also provides technical support and resources to help engineers resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7314DG4 Overview

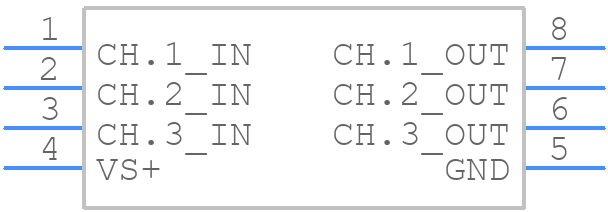

Use the download button to access the THS7314DG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Buffer Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
