Texas Instruments provides a recommended PCB layout in the THS7315D evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The THS7315D is a general-purpose video amplifier, but Texas Instruments provides application notes and design guides for specific video formats, such as HDMI and SDI, which include recommendations for component values, biasing, and filtering to optimize performance for the desired format.
The maximum cable length that can be driven by the THS7315D depends on the specific video format, cable type, and signal frequency. As a general rule, the THS7315D can drive up to 10 meters of cable for HDMI signals and up to 100 meters of cable for SDI signals, but this may vary depending on the specific application and signal quality requirements.
To ensure EMC with the THS7315D, follow proper PCB layout and design guidelines, use shielding and filtering as necessary, and ensure that the device is properly decoupled and bypassed. Texas Instruments also provides EMC guidelines and recommendations in the THS7315D datasheet and application notes.
The power dissipation of the THS7315D depends on the specific application and operating conditions. The device has a maximum power dissipation of 1.2W, and thermal management is critical to ensure reliable operation. Use a heat sink or thermal pad as necessary, and follow proper PCB design and layout guidelines to minimize thermal resistance and ensure adequate heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7315D Overview

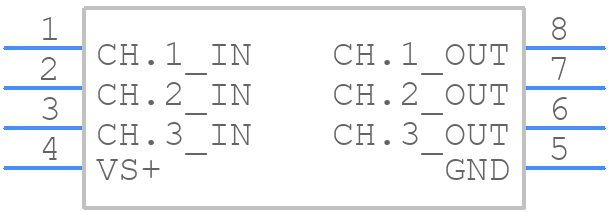

Use the download button to access the THS7315D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
