FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1050 V/us
Supply Current-Max:
125 mA
Supply Voltage Limit-Max:
5.5 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
THS7327PHPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS7327PHPR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The THS7327PHPR has a flexible input impedance configuration. To optimize for a specific input impedance, adjust the values of the input resistors (RIN1 and RIN2) and capacitors (CIN1 and CIN2) according to the datasheet's input impedance calculation formula and the desired input impedance value.
The THS7327PHPR can drive a maximum capacitive load of 100 pF. Exceeding this limit may cause instability or oscillations. If a larger capacitive load is required, consider adding a buffer stage or using a different amplifier.
To reduce power consumption, consider reducing the supply voltage (VCC) to the minimum recommended value, using a lower power mode (e.g., shutdown mode), or implementing a power-saving scheme in the system design. Additionally, optimizing the input impedance and output loading can also help minimize power consumption.
The THS7327PHPR has a high power density, so proper thermal management is crucial. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Follow the thermal design guidelines in the datasheet and application notes to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7327PHPR Overview

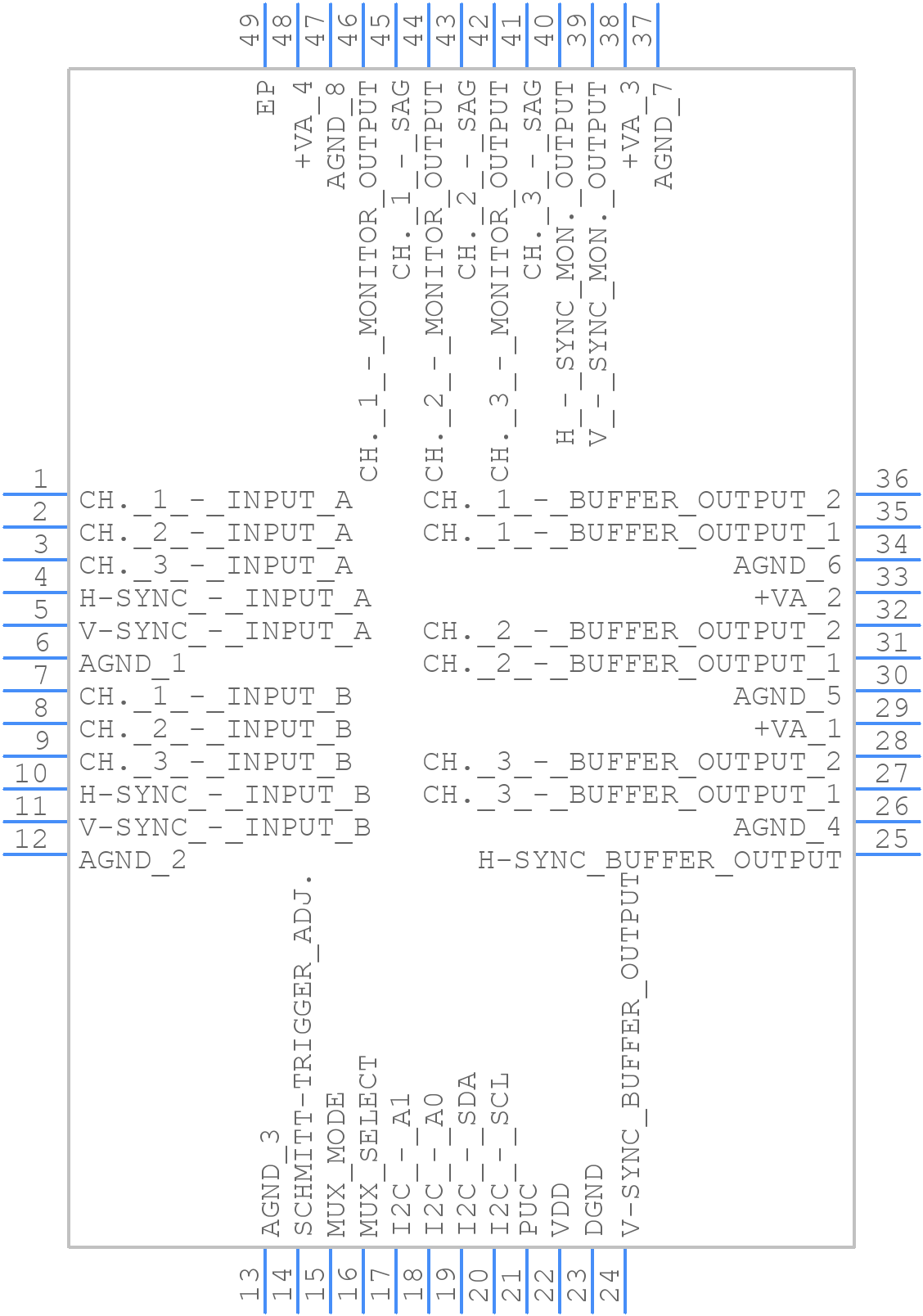

Use the download button to access the THS7327PHPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Buffer Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
