FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Packing Method:
TRAY
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1050 V/us
Supply Current-Max:
105 mA
Supply Voltage Limit-Max:
5.5 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
THS7347IPHP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS7347IPHP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The THS7347IPHP is a flexible device that can be optimized for various video formats by adjusting the input and output termination, gain settings, and filter configurations. Consult the datasheet and application notes for specific guidance on optimizing the device for your target video format.
The maximum cable length supported by the THS7347IPHP depends on the specific video format, cable quality, and signal frequency. As a general guideline, the device can support cable lengths up to 30 meters for HDMI and 100 meters for SDI, but this may vary depending on the specific application. Consult the datasheet and application notes for more information.
To troubleshoot common issues with the THS7347IPHP, start by verifying the power supply and clocking configurations, then check the input and output signal quality using an oscilloscope or signal analyzer. Consult the datasheet and application notes for guidance on troubleshooting specific issues, and consider using the THS7347IPHP evaluation module to isolate and debug the problem.
Yes, the THS7347IPHP is designed to work seamlessly with other Texas Instruments video processing devices, such as the THS8200 and THS7303. Consult the datasheet and application notes for specific guidance on integrating the THS7347IPHP with other TI video processing devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7347IPHP Overview

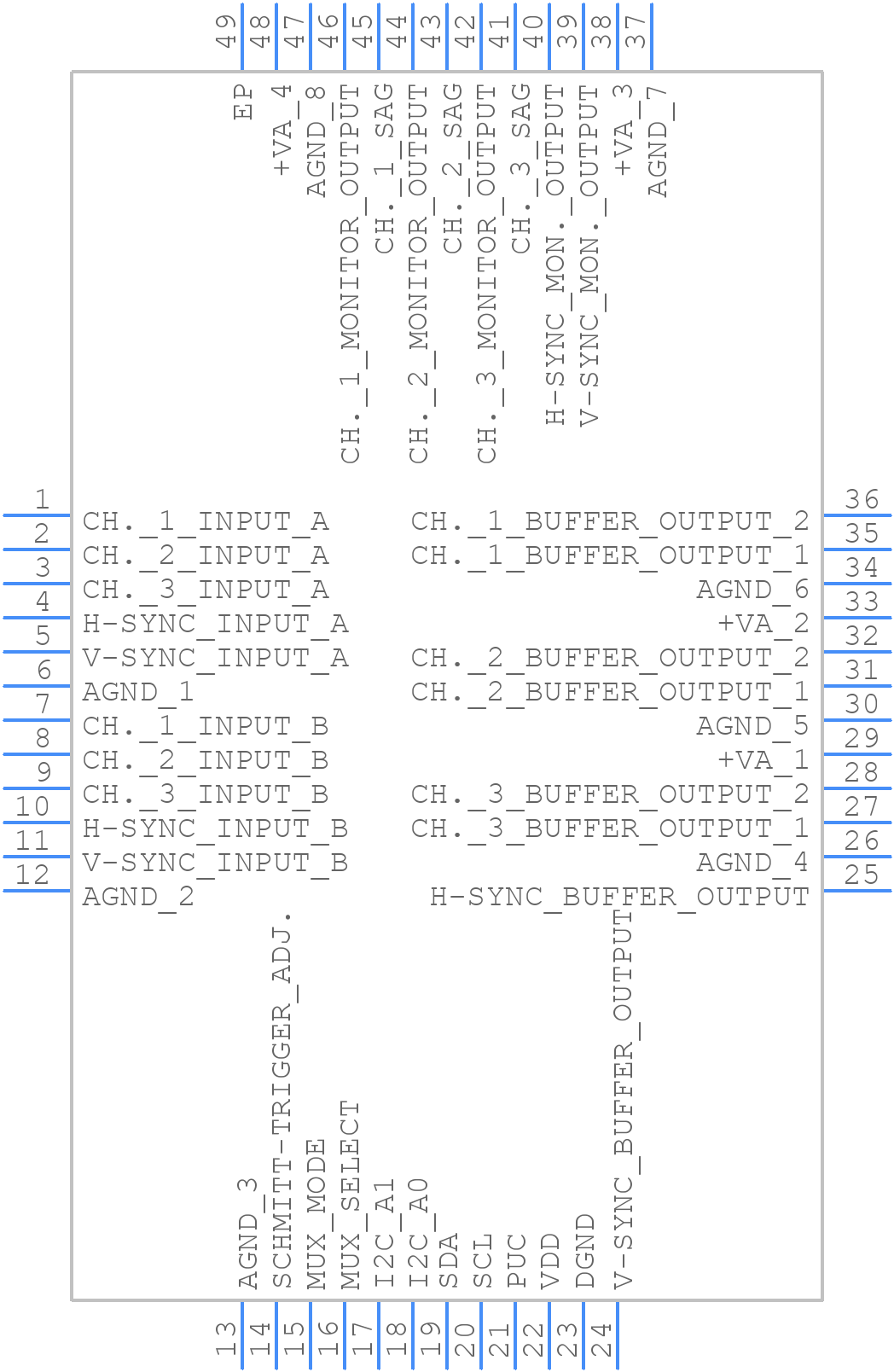

Use the download button to access the THS7347IPHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Buffer Amplifiers
