FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1050 V/us
Supply Current-Max:
105 mA
Supply Voltage Limit-Max:
5.5 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
THS7347IPHPR Frequently Asked Questions (FAQs)
A good PCB layout for the THS7347 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the THS7347's performance, it's essential to understand the specific requirements of your application. This includes selecting the correct gain setting, adjusting the bandwidth, and optimizing the output filter. Additionally, consider the input impedance, output impedance, and noise requirements of your application.
The THS7347 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This includes using a heat sink, ensuring good airflow, and avoiding high ambient temperatures.
Common issues with the THS7347 include oscillations, noise, and distortion. To troubleshoot these issues, start by checking the PCB layout, ensuring that the device is properly powered, and verifying that the input and output signals are within the recommended specifications. Additionally, use oscilloscopes and spectrum analyzers to visualize the signals and identify the root cause of the issue.
The THS7347 has built-in ESD protection, but it's still essential to take precautions during handling and assembly. This includes using ESD-safe equipment, wearing ESD-protective clothing, and ensuring that the device is properly grounded during assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7347IPHPR Overview

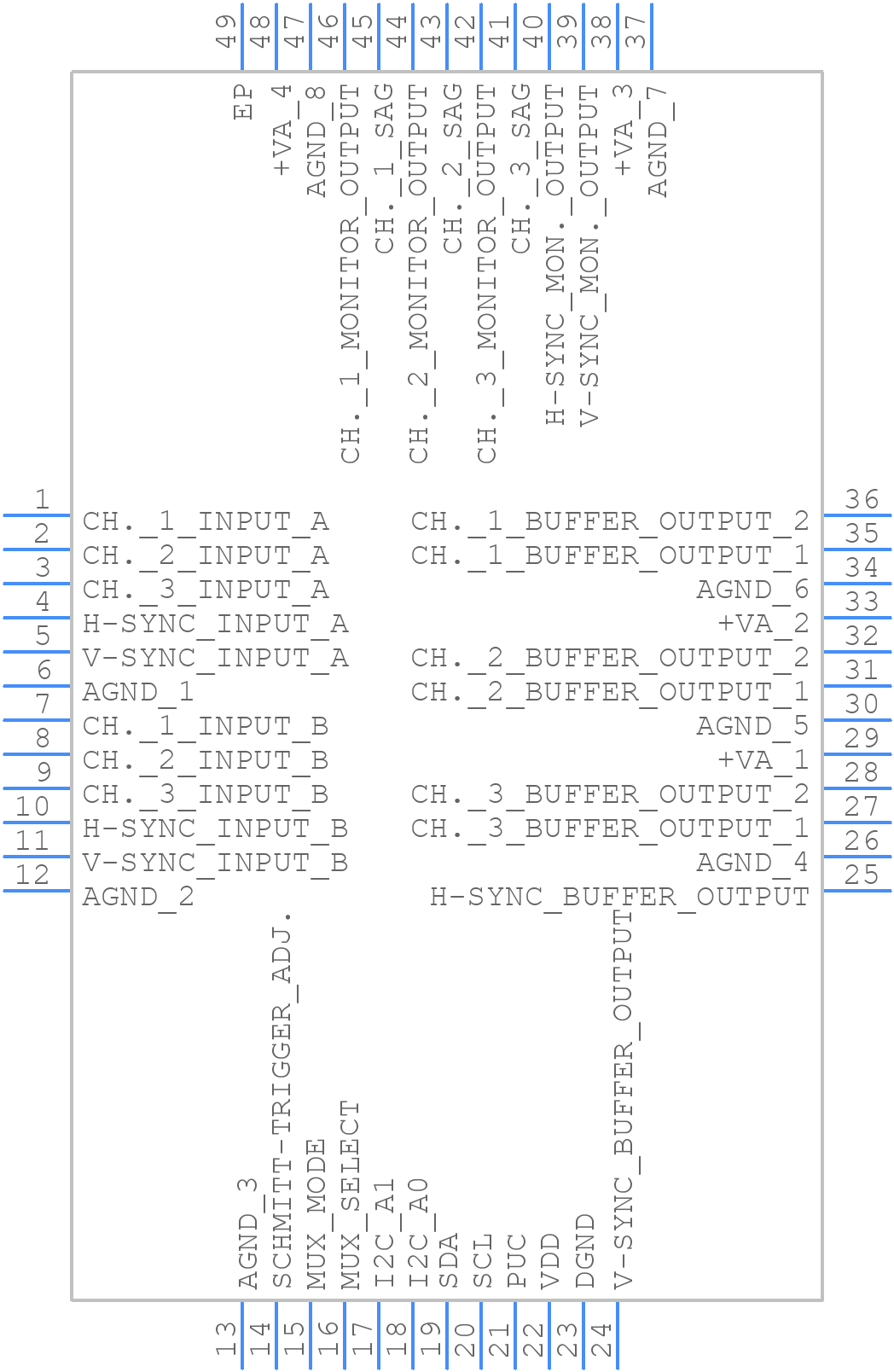

Use the download button to access the THS7347IPHPR schematic symbol, PCB footprint, and 3D model.
