Texas Instruments provides a recommended PCB layout in the THS7368IPWR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The THS7368IPWR is a flexible device that can be optimized for various video formats by adjusting the input and output termination, gain settings, and equalization. Consult the datasheet and application notes for specific guidance on optimizing the device for your target video format.
The maximum cable length supported by the THS7368IPWR depends on the specific video format, cable quality, and signal frequency. As a general guideline, the device can support cable lengths up to 30 meters for HDMI and 100 meters for SDI, but this may vary depending on the specific application.
Common issues with the THS7368IPWR can be troubleshooted by checking the power supply, input and output termination, and signal integrity. Use oscilloscopes and signal analyzers to verify signal quality and integrity, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the THS7368IPWR can be used in a redundant or backup configuration to ensure high reliability and availability in critical applications. Consult the datasheet and application notes for guidance on implementing redundant or backup configurations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
THS7368IPWR Overview

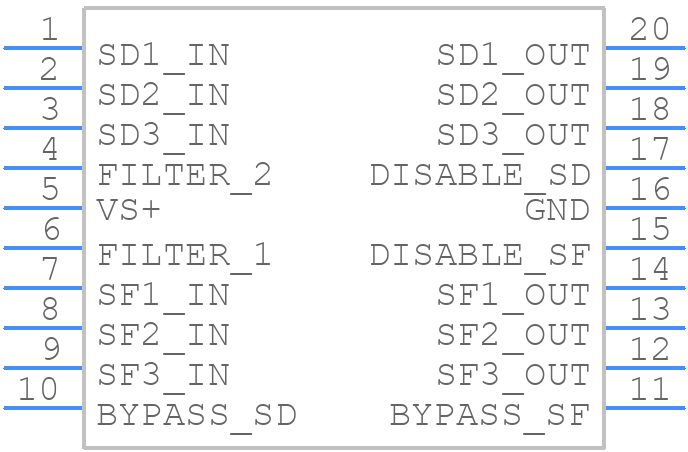

Use the download button to access the THS7368IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Audio/Video Amplifiers
