THS8135PHP - Texas Instruments

Description: THS8135PHP, Video DAC, 10 bit- 240Msps 0.015μs Serial (SPI), 48-Pin HTQFP

Download THS8135PHP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

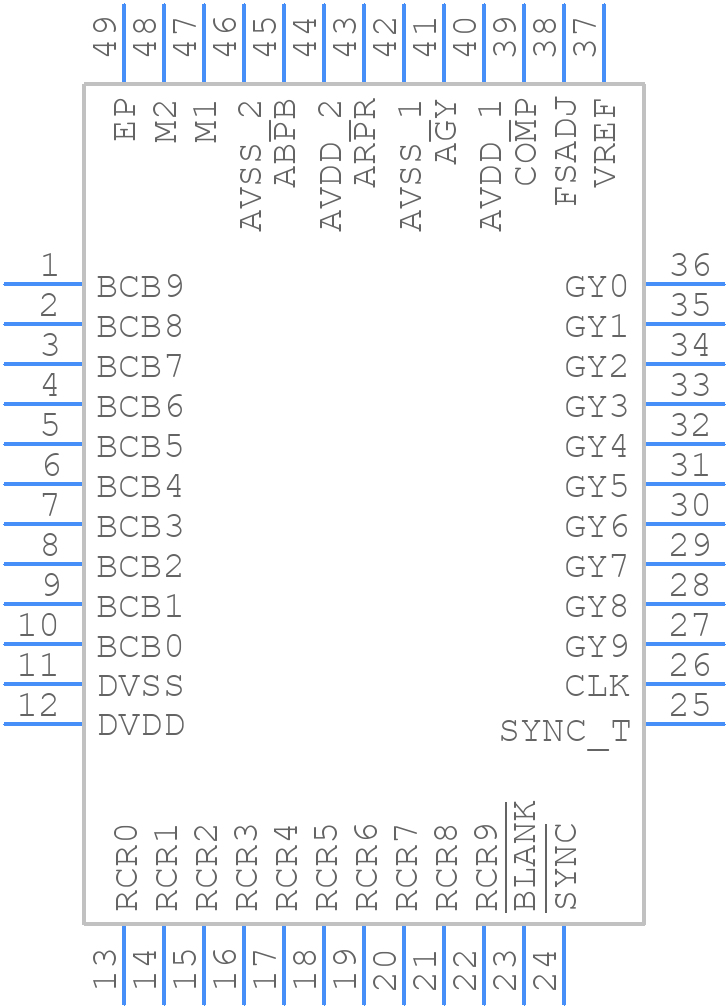

Symbol
THS8135PHP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS8135PHP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP (S-PQFP-G48)_1
click to zoom
3D Models
THS8135PHP - Texas Instruments - 3D model - Quad Flat Packages - PHP (S-PQFP-G48)_1
click to zoom

THS8135PHP Details

  • Manufacturer Part Number:

    THS8135PHP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    0.817 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.1465%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.015 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

THS8135PHP Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS8135PHP involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the THS8135PHP for a specific frequency range, adjust the gain and bandwidth settings according to the application requirements. The device has a programmable gain amplifier and a 6th-order Butterworth filter, which can be configured to optimize performance for a specific frequency range.
  • The recommended power-up sequence for the THS8135PHP is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To troubleshoot issues with the THS8135PHP, start by checking the power supply voltages and ensuring that they are within the recommended range. Then, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and verify that they meet the expected specifications.
  • The THS8135PHP has a thermal pad that must be connected to a solid ground plane to ensure effective heat dissipation. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Additionally, ensure good airflow around the device to prevent overheating.
