FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Settling Time-Nom (tstl):
0.015 µs
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
THS8135PHPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS8135 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The THS8135PHPG4 is a flexible device that can be optimized for various video formats by adjusting the input and output termination, gain settings, and clocking configuration. Consult the datasheet and application notes for specific guidance on optimizing the device for your target video format.
The maximum cable length supported by the THS8135PHPG4 depends on the specific interface and signal frequency. As a general guideline, the device can support cable lengths up to 10 meters for HDMI 2.0 and 3 meters for HDMI 1.4, but this may vary depending on the specific application and signal quality requirements.
To ensure EMI compliance, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and consider using EMI filters or common-mode chokes to reduce emissions. Additionally, consult the THS8135PHPG4 datasheet and application notes for specific guidance on EMI mitigation.
The power consumption of the THS8135PHPG4 varies depending on the specific configuration and operating mode. Consult the datasheet for detailed power consumption specifications. To optimize power management, consider using power-saving features such as clock gating, dynamic voltage scaling, and low-power modes, and ensure that the device is properly powered down when not in use.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS8135PHPG4 Overview

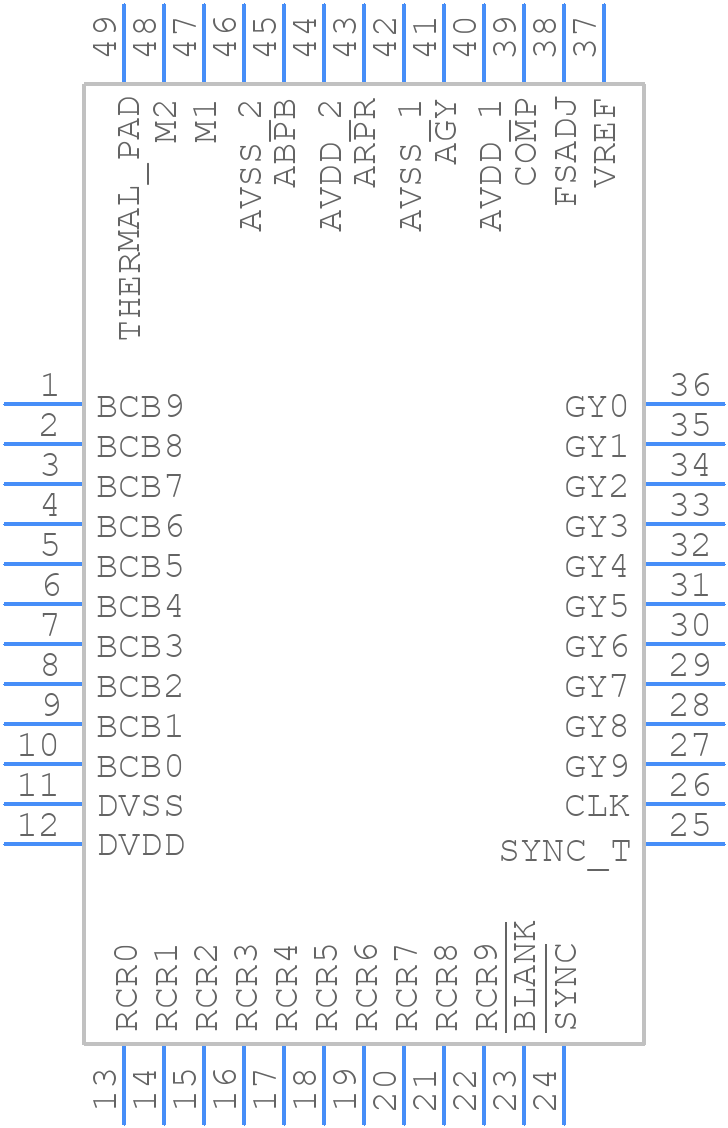

Use the download button to access the THS8135PHPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS81,
or try a keyword search, such as Digital to Analog Converters
