- Part Number THS8200PFP
- Manufacturer Texas Instruments
- Pin Count 81
- Part Category Integrated Circuit
- Package Category Other

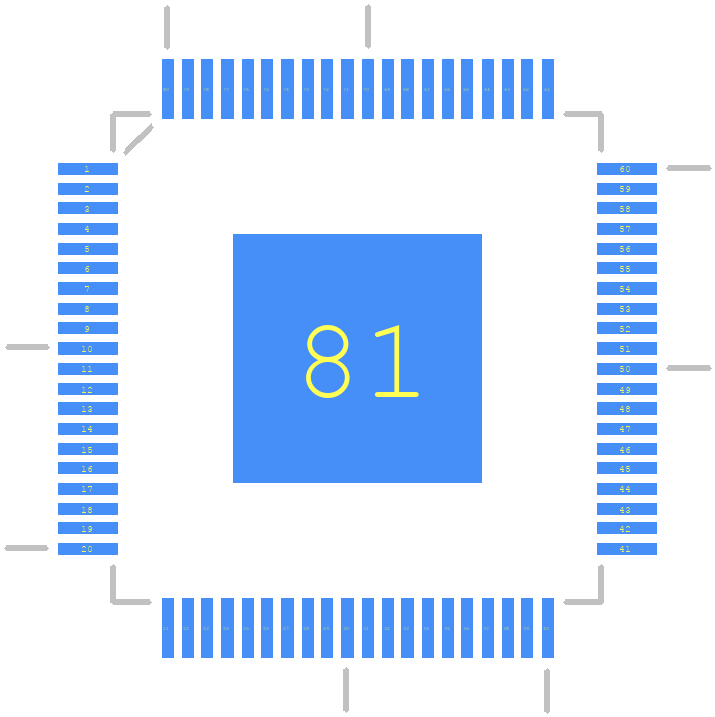

- Footprint Name Other - QFP50P1400X1400X120-81N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
THS8200PFP Details
-
Manufacturer Part Number:
THS8200PFP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Pin Count:
80
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Texas Instruments
THS8200PFP Frequently Asked Questions (FAQs)
-
A good PCB layout for the THS8200PFP involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To optimize the THS8200PFP for low noise performance, use a low-noise power supply, keep the input and output impedance matched, and use a low-pass filter at the output. Additionally, minimize the distance between the device and the power supply, and use a solid ground plane to reduce electromagnetic interference (EMI).
-
The THS8200PFP has an operating temperature range of -40°C to 85°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate it within a temperature range of 0°C to 70°C for optimal performance.
-
Yes, the THS8200PFP is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
-
Common issues with the THS8200PFP include oscillations, noise, and distortion. To troubleshoot these issues, check the PCB layout, power supply, and input/output impedance matching. Also, ensure that the device is operated within its specified parameters, and that the input signal is within the recommended range.
