Part Image

THS9000DRWT - Texas Instruments

Description: 50 MHz to 750 MHz Cascadable Amplifier

Download THS9000DRWT Model

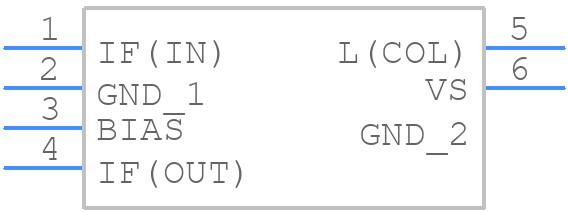

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS9000DRWT - Texas Instruments PCB footprint - Other - Other - DRW (S-PVSON -N6)
click to zoom
3D Models
THS9000DRWT - Texas Instruments  - 3D model - Other - DRW (S-PVSON -N6)
click to zoom

THS9000DRWT Details

  • Manufacturer Part Number:

    THS9000DRWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-6

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15.6 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    750 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    100 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • VSWR-Max:

    1.43

THS9000DRWT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize crosstalk.
  • Use a voltage regulator to provide a stable supply voltage, and ensure the input common-mode voltage is within the recommended range (0.5V to 2.5V). Also, use a low-ESR capacitor for decoupling.
  • The maximum input signal amplitude is 2.5Vpp differential, but it's recommended to limit it to 2Vpp to ensure optimal linearity and minimize distortion.
  • Use a low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling rate) to filter out noise and aliasing. A 3rd-order Butterworth filter is a good starting point.
  • The recommended clock frequency is between 10MHz to 100MHz, but it can operate up to 200MHz. Ensure the clock signal is clean and has minimal jitter for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS9000DRWT Overview

Use the download button to access the THS9000DRWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS90, or try a keyword search, such as RF/Microwave Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
