Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-matched and impedance-controlled.
To mitigate high-frequency noise and EMI issues, use proper shielding, grounding, and decoupling techniques. Ensure that the device is placed close to the power supply, and use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND. Additionally, consider using a common-mode choke or a ferrite bead on the input lines.
The maximum cable length supported by the THVD2410VDRCR depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters (33 feet) at data rates up to 3.125 Gbps. For longer cable lengths or higher data rates, consider using repeaters or active cables.
The THVD2410VDRCR is a highly configurable device that supports various data rates and protocols. To configure the device, use the dedicated control pins (e.g., RATE_SEL, PROTOCOL_SEL) to select the desired data rate and protocol. Refer to the datasheet and application notes for specific configuration details and examples.
The THVD2410VDRCR has a relatively high power dissipation, so proper thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device has a thermal shutdown feature that activates when the junction temperature exceeds 150°C (302°F).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THVD2410VDRCR Overview

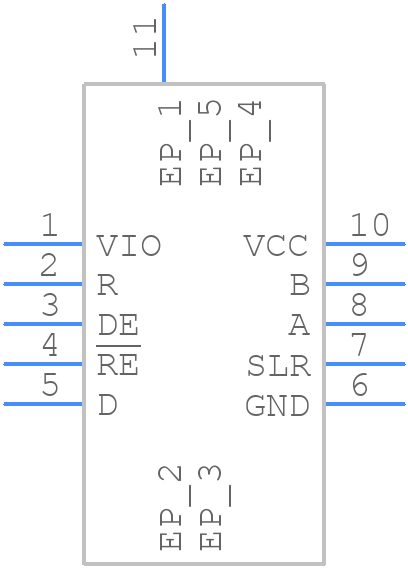

Use the download button to access the THVD2410VDRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THVD2,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
