TIBPAL20R4-15CNT - Texas Instruments

Description: TEXAS INSTRUMENTS - TIBPAL20R4-15CNT - IC, PAL, IMPACT-X, 15NS, 24-DIP

Download TIBPAL20R4-15CNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

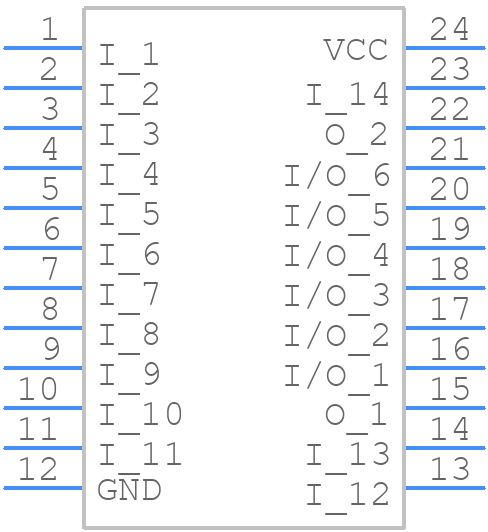

TIBPAL20R4-15CNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIBPAL20R4-15CNT - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - JT (R-GDIP-T**)
click to zoom

TIBPAL20R4-15CNT Details

  • Manufacturer Part Number:

    TIBPAL20R4-15CNT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-24

  • Pin Count:

    24

  • HTS Code:

    8542.31.00.55

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    REGISTER PRELOAD; POWER-UP RESET

  • Architecture:

    PAL-TYPE

  • Clock Frequency-Max:

    37 MHz

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e4

  • Length:

    31.64 mm

  • Number of Dedicated Inputs:

    12

  • Number of I/O Lines:

    4

  • Number of Inputs:

    16

  • Number of Outputs:

    8

  • Number of Product Terms:

    64

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    75 °C

  • Organization:

    12 DEDICATED INPUTS, 4 I/O

  • Output Function:

    MIXED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Programmable Logic Type:

    OT PLD

  • Propagation Delay:

    18 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TIBPAL20R4-15CNT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal via array with a minimum of 10 vias under the package to ensure optimal heat dissipation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system to keep the junction temperature below 150°C.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V to ensure reliable operation.
  • Texas Instruments recommends using a human body model (HBM) ESD protection circuit with a minimum of 2 kV rating to protect the device from electrostatic discharge. Additionally, handling the device by the body or using an anti-static wrist strap can help prevent ESD damage.
  • The recommended power sequencing for the TIBPAL20R4-15CNT is to power up the VCC pin first, followed by the input signals, and then the output loads. This ensures that the device is properly initialized and configured before the output loads are applied.
