Texas Instruments recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or fans, to keep the device within the recommended temperature range.
The maximum allowed voltage on the input pins is 5.5V, as specified in the datasheet. Exceeding this voltage may cause damage to the device or affect its reliability.
The TIBPAL20R8-15CNT is an industrial-grade device, but it's not specifically designed for high-reliability or automotive applications. For such applications, consider using devices with higher reliability ratings, such as those with AEC-Q100 certification.
To prevent electrostatic discharge (ESD) damage, follow proper handling and assembly procedures, such as using ESD-safe materials, grounding straps, and ionizers. Ensure that the device is stored in an ESD-safe environment and handled by personnel wearing ESD-protective clothing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TIBPAL20R8-15CNT Overview

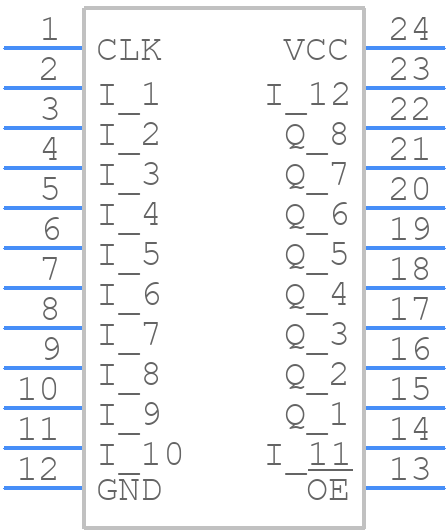

Use the download button to access the TIBPAL20R8-15CNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIBPA,
or try a keyword search, such as Programmable Logic Devices
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
