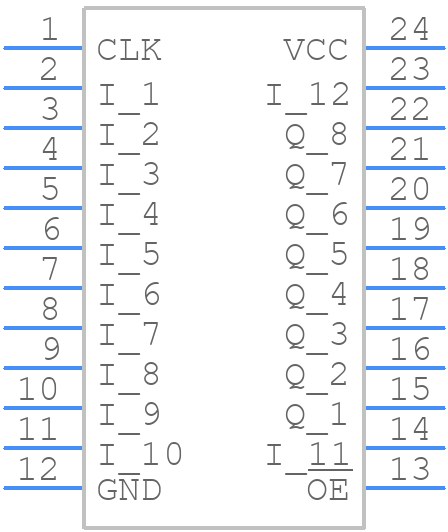

TIBPAL20R8-20MJTB - Texas Instruments

TIBPAL20R8-20MJTB Details

• Manufacturer Part Number:

  TIBPAL20R8-20MJTB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  24

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.31.00.75

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  40 MHz

• In-System Programmable:

  NO

• JESD-30 Code:

  R-GDIP-T24

• JESD-609 Code:

  e0

• JTAG BST:

  NO

• Length:

  32.005 mm

• Number of Dedicated Inputs:

  12

• Number of Inputs:

  12

• Number of Outputs:

  8

• Number of Product Terms:

  64

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  12 DEDICATED INPUTS, 0 I/O

• Output Function:

  REGISTERED

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Programmable Logic Type:

  OT PLD

• Propagation Delay:

  20 ns

• Qualification Status:

  Not Qualified

• Screening Level:

  38535Q/M;38534H;883B

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  5.25 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
