The recommended programming method for TIBPAL22V10-10CFN is through the use of a programming adapter, such as the TI PAL22V10 programmer, or through the use of a third-party programmer that supports the PAL22V10 device.
To ensure proper powering during programming, connect the VCC pin to a 5V power supply and the GND pin to ground. Additionally, make sure that the programming adapter or programmer is set to the correct voltage and current settings for the device.
The maximum clock frequency that the TIBPAL22V10-10CFN can operate at is 100 MHz. However, the actual operating frequency may be limited by the specific application and system design.
Yes, the TIBPAL22V10-10CFN can be used in a 3.3V system, but it requires an external voltage regulator to step down the voltage from 5V to 3.3V. Additionally, the input and output voltage levels may need to be adjusted to ensure compatibility with the 3.3V system.
To troubleshoot programming issues with the TIBPAL22V10-10CFN, check the programming adapter or programmer settings, ensure that the device is properly powered, and verify that the programming software is compatible with the device. Additionally, check for any damage to the device or programming adapter, and try re-programming the device with a different adapter or programmer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TIBPAL22V10-10CFN Overview

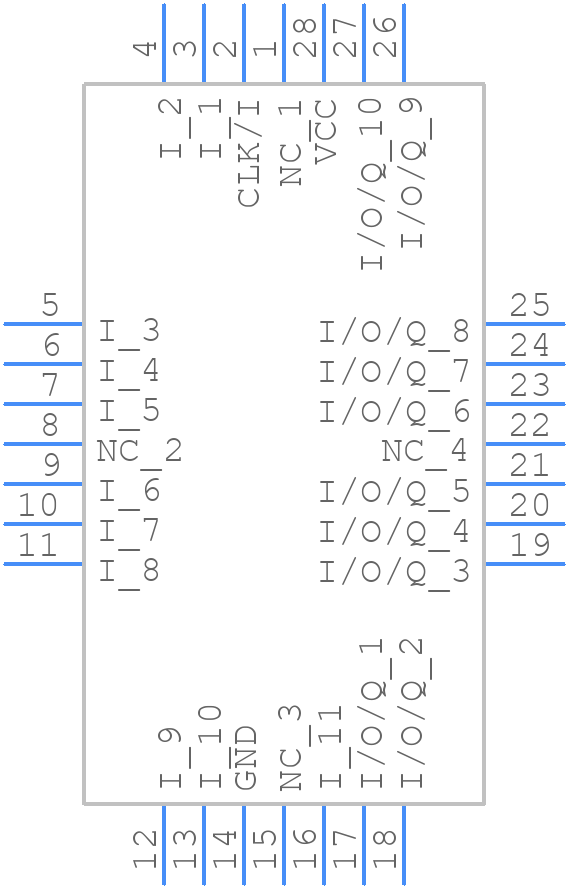

Use the download button to access the TIBPAL22V10-10CFN schematic symbol and PCB footprint.
