Texas Instruments recommends following the guidelines in the 'Thermal Management' section of the datasheet. Additionally, a good PCB layout practice is to use a solid ground plane, keep the device away from high-current paths, and use thermal vias to dissipate heat.
The TIBPAL22V10-7CNT can be programmed using a variety of tools, including the Texas Instruments PALASM software, the Xilinx ISE Design Suite, or third-party programming tools like the Xeltek SuperPro 7000. The device can be programmed in-system or using a programming adapter.
The maximum clock frequency of the TIBPAL22V10-7CNT is 100 MHz. However, the actual clock frequency may be limited by the specific application, PCB layout, and system design.
The TIBPAL22V10-7CNT is not specifically designed or qualified for radiation-hardened or high-reliability applications. For such applications, Texas Instruments recommends using their radiation-hardened or high-reliability products, such as the RHPAL22V10 or the HI-REL PAL devices.
The TIBPAL22V10-7CNT is a unique device from Texas Instruments, but similar devices from other manufacturers include the Altera EPM2210F, the Lattice ispPAC22LV10, or the Microchip ATF22V10C. However, these devices may have different features, pinouts, and programming requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TIBPAL22V10-7CNT Overview

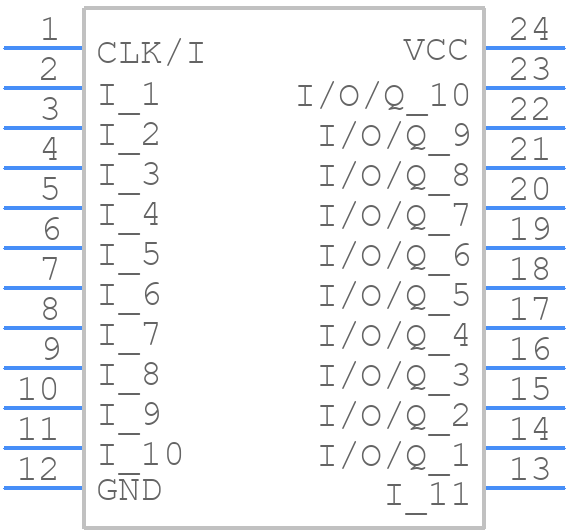

Use the download button to access the TIBPAL22V10-7CNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIBPA,
or try a keyword search, such as Programmable Logic Devices
