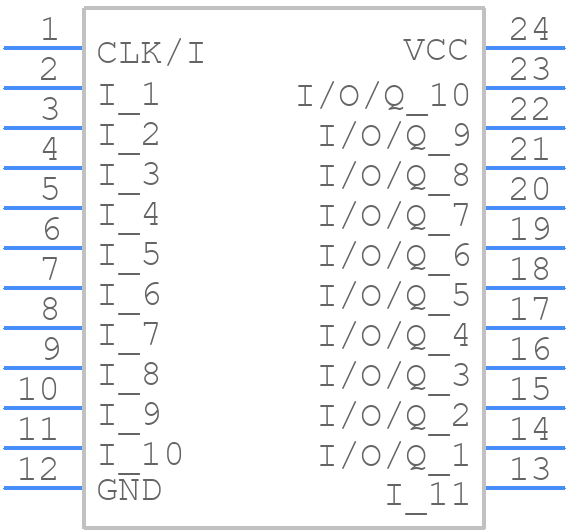

TIBPAL22V10AMJTB - Texas Instruments

TIBPAL22V10AMJTB Details

• Manufacturer Part Number:

  TIBPAL22V10AMJTB

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-24

• Pin Count:

  24

• ECCN Code:

  3A001.a.2.c

• HTS Code:

  8542.31.00.55

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  22 MHz

• JESD-30 Code:

  R-GDIP-T24

• Length:

  32.005 mm

• Number of Dedicated Inputs:

  11

• Number of I/O Lines:

  10

• Number of Inputs:

  22

• Number of Outputs:

  10

• Number of Product Terms:

  132

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  11 DEDICATED INPUTS, 10 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Programmable Logic Type:

  OT PLD

• Propagation Delay:

  30 ns

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38535

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  MILITARY

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.62 mm
