TIL111M - onsemi

Description: UL recognized (File #E90700); Add option V for white package (e.g., TIL111VM); VDE recognized (File #94766); (File #102497 for white package)

Download TIL111M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

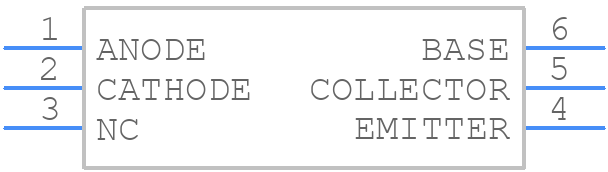

Symbol
TIL111M - onsemi - PCB symbol
click to zoom
PCB Footprints
TIL111M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TIL111M
click to zoom
3D Models
TIL111M - onsemi - 3D model - Dual-In-Line Packages - TIL111M
click to zoom

TIL111M Details

  • Manufacturer Part Number:

    TIL111M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

TIL111M Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to the copper area.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider the power dissipation and thermal resistance of the package when designing the system.
  • A ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode to protect the device from voltage transients. Additionally, consider using a current limiting resistor or a fuse to prevent overcurrent conditions.
  • Keep the input and output traces as short as possible and separate them from each other. Use a ground plane to reduce noise and EMI. Avoid running sensitive traces near the device's switching nodes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIL111M Overview

Use the download button to access the TIL111M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIL11, or try a keyword search, such as Optocoupler
