TIL117M - onsemi

Description: UL recognized (File #E90700); VDE recognized (File #94766); (File #102497 for white package); Add option V for white package (e.g., TIL111VM)

Download TIL117M Model

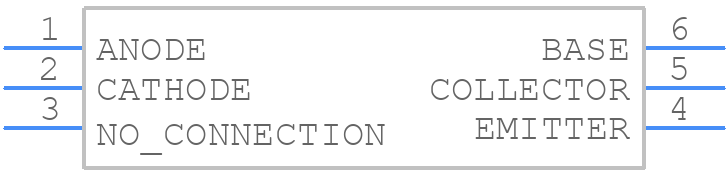

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TIL117M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O
click to zoom
3D Models
TIL117M - onsemi  - 3D model - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O
click to zoom

TIL117M Details

  • Manufacturer Part Number:

    TIL117M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

TIL117M Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to the copper area.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider the power dissipation and thermal resistance of the package when designing the system.
  • A ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode to protect the device from overvoltage conditions. Additionally, consider using a current limiting resistor or a fuse to protect against overcurrent conditions.
  • A ceramic capacitor with a value of 10uF to 22uF is recommended for output filtering. The capacitor should be placed as close to the output pin as possible to minimize noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIL117M Overview

Use the download button to access the TIL117M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIL11, or try a keyword search, such as Optocoupler
