TIL196 - Texas Instruments

TIL196 Details

• Manufacturer Part Number:

  TIL196

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

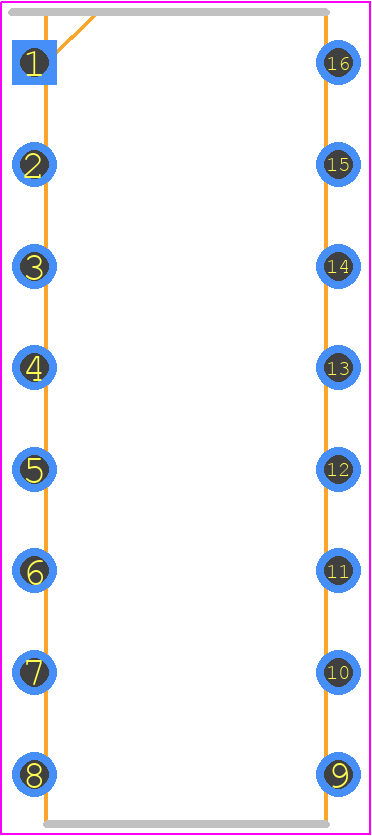

• Package Description:

  PLASTIC, DIP-16

• HTS Code:

  8541.40.80.00

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  UL RECOGNIZED

• Coll-Emtr Bkdn Voltage-Min:

  35 V

• Configuration:

  SEPARATE, 4 CHANNELS

• Current Transfer Ratio-Min:

  20%

• Dark Current-Max:

  100 nA

• Forward Current-Max:

  0.05 A

• Forward Voltage-Max:

  1.4 V

• Isolation Voltage-Max:

  2500 V

• Mounting Feature:

  THROUGH HOLE MOUNT

• Number of Elements:

  4

• Optoelectronic Device Type:

  AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

• Power Dissipation-Max:

  0.2 W

• Response Time-Max:

  0.000006 s

• Surface Mount:

  NO
