TIL3023 - Texas Instruments

Description: Triac & SCR Output Optocouplers Optocoupler/Optoisolator 6-PDIP

Download TIL3023 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

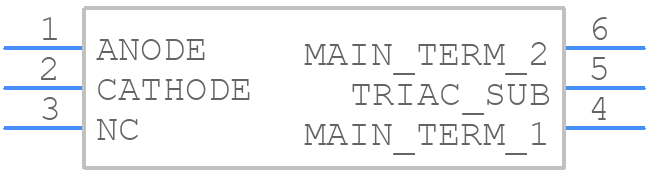

TIL3023 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIL3023 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 4N35
click to zoom
3D Models
TIL3023 - Texas Instruments - 3D model - Dual-In-Line Packages - 4N35
click to zoom

TIL3023 Details

  • Manufacturer Part Number:

    TIL3023

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, DIP-6

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Input Trigger Current-Nom:

    3 mA

  • Isolation Voltage-Max:

    3535 V

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Off-state Voltage-Min:

    400 V

TIL3023 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a ferrite bead to filter out high-frequency noise.
  • To ensure proper biasing, it's essential to follow the recommended biasing circuit in the datasheet. This includes using a voltage divider to set the input bias voltage to around 1.4V, and ensuring the output stage is properly terminated with a 50Ω load.
  • The TIL3023 is rated for operation from -40°C to 85°C. However, it's essential to ensure proper thermal management, as high temperatures can affect the device's performance and reliability.
  • To protect the TIL3023 from ESD, it's recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-sensitive packaging and storage. Additionally, it's essential to follow proper PCB design and layout guidelines to minimize ESD susceptibility.
  • The recommended input signal amplitude for the TIL3023 is between 100mVpp and 1Vpp. Signals outside this range may result in reduced linearity and increased distortion.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIL3023 Overview

Use the download button to access the TIL3023 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIL30, or try a keyword search, such as Optocoupler
