TIL306 - Texas Instruments

Description: LED Displays & Accessories NUMERIC DISPLAYS WITH LOGIC

Download TIL306 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

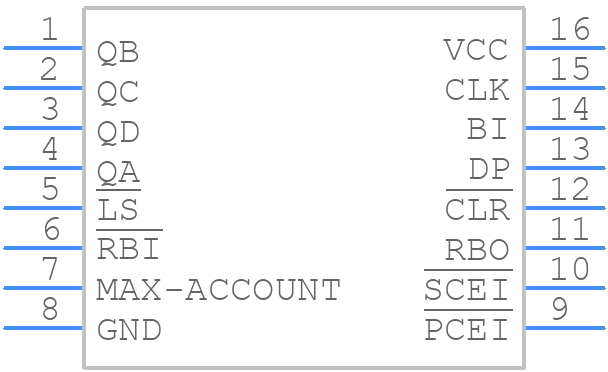

TIL306 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

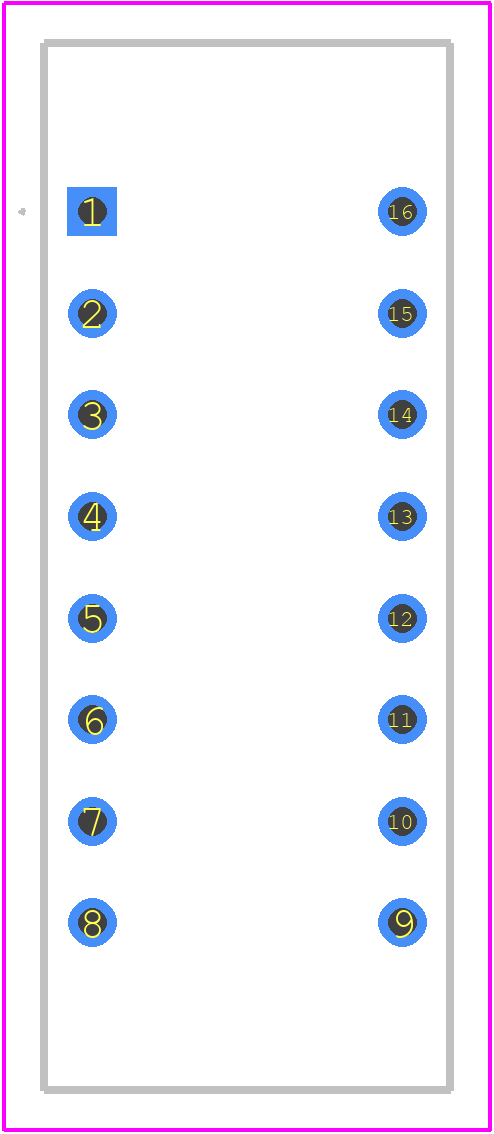

TIL306 - Texas Instruments PCB footprint - Other - Other - TIL306-3
click to zoom
3D Models
TIL306 - Texas Instruments - 3D model - Other - TIL306-3
click to zoom

TIL306 Details

  • Manufacturer Part Number:

    TIL306

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    WITH COUNTER/LATCH/DECODER/DRIVER

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMPLEX

  • Display Height:

    6.9 mm

  • Forward Current-Max:

    0.001 A

  • Forward Voltage-Max:

    5.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

TIL306 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TIL306 is 4.5V to 16V, although it can operate up to 18V with reduced performance.
  • To ensure proper biasing, connect the midpoint of the input voltage divider to the midpoint of the output voltage divider, and ensure the input voltage is at least 2V above the output voltage.
  • The TIL306 can deliver up to 1A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions.
  • To minimize noise and ripple, use a well-regulated input voltage, add a 10uF capacitor between the input and ground, and use a 10uF capacitor between the output and ground.
  • Yes, the TIL306 can be used in switching regulator applications, but it's essential to ensure the input voltage is well-regulated and the output voltage is properly filtered to prevent oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIL306 Overview

Use the download button to access the TIL306 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIL30, or try a keyword search, such as LED Displays

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
