TIOL111DMWR - Texas Instruments

Description: IO-Link Device Transceivers With Integrated Surge Protection

Download TIOL111DMWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

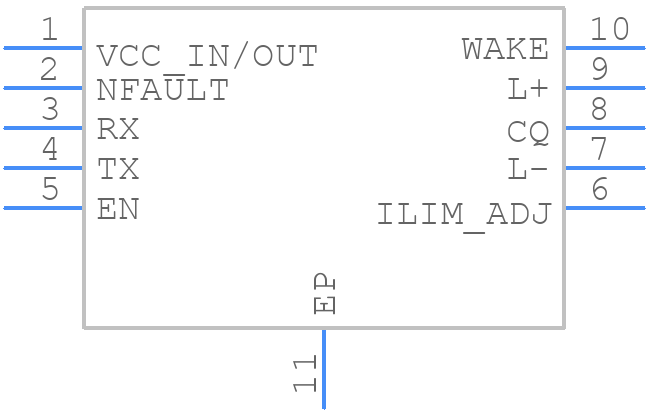

TIOL111DMWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIOL111DMWR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMW0010A
click to zoom
3D Models
TIOL111DMWR - Texas Instruments - 3D model - Small Outline No-lead - DMW0010A
click to zoom

TIOL111DMWR Details

  • Manufacturer Part Number:

    TIOL111DMWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    IO-LINK TRANSCEIVER

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TIOL111DMWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
  • Use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a 1uF capacitor between VIN and GND. Place these capacitors close to the device. Ensure a stable input voltage and use a low-dropout regulator if necessary.
  • The TIOL111DMWR supports data rates up to 100 Mbps, but the actual data rate may vary depending on the specific application and system design.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device, and avoid blocking the thermal pads. Consider using a thermal interface material (TIM) for improved heat transfer.
  • The TIOL111DMWR has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIOL111DMWR Overview

Use the download button to access the TIOL111DMWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIOL1, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
