TIOL111DMWT - Texas Instruments

Description: IO-Link Device Transceivers With Integrated Surge Protection

Download TIOL111DMWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

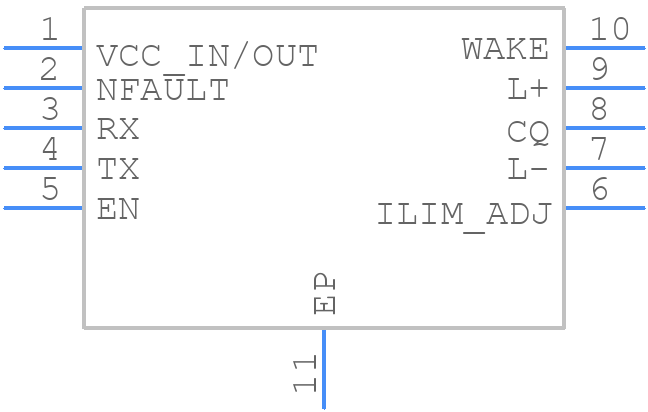

TIOL111DMWT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIOL111DMWT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMW0010A
click to zoom
3D Models
TIOL111DMWT - Texas Instruments - 3D model - Small Outline No-lead - DMW0010A
click to zoom

TIOL111DMWT Details

  • Manufacturer Part Number:

    TIOL111DMWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    IO-LINK TRANSCEIVER

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TIOL111DMWT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
  • Monitor the input voltage, output current, and junction temperature to ensure they are within the recommended ranges. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep the junction temperature below 125°C.
  • Use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters or chokes on the input and output lines. Ensure proper grounding and decoupling to minimize radiated emissions.
  • Use an oscilloscope to monitor the input and output waveforms, and check for signs of oscillation or ringing. Verify the input voltage and output current are within specifications. Check for thermal issues by monitoring the junction temperature and ensuring proper heat sinking.
  • Yes, but ensure you follow Texas Instruments' guidelines for high-reliability and safety-critical applications. Implement redundant systems, error detection, and correction mechanisms to ensure the device operates within specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIOL111DMWT Overview

Use the download button to access the TIOL111DMWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIOL1, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
