TIOS1013DMWT - Texas Instruments

Description: Sensor Interface Digital sensor output driver with integrated surge protection and 3.3-V LDO output 10-VSON -40 to 125

Download TIOS1013DMWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

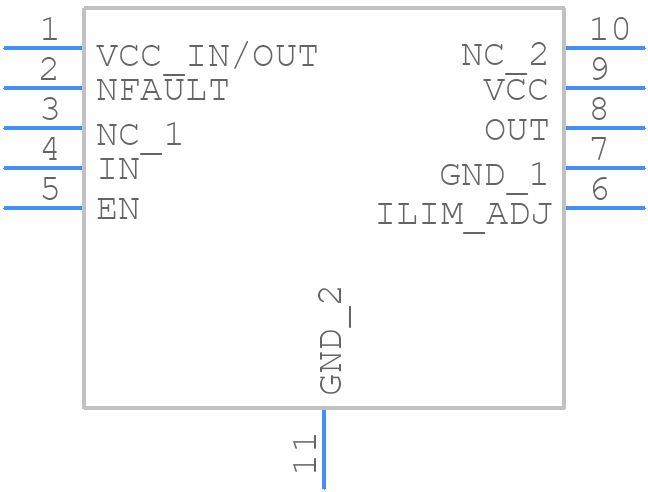

TIOS1013DMWT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIOS1013DMWT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMW0010A
click to zoom
3D Models
TIOS1013DMWT - Texas Instruments - 3D model - Small Outline No-lead - DMW0010A
click to zoom

TIOS1013DMWT Details

  • Manufacturer Part Number:

    TIOS1013DMWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TIOS1013DMWT Frequently Asked Questions (FAQs)

  • TI recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern around the device to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for optimal heat dissipation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, including providing adequate heat sinking, using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and keeping the junction temperature (TJ) below 150°C.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 1.8V to 5V.
  • TI recommends using a human-body model (HBM) ESD protection circuit with a minimum of 2 kV rating to protect the device from electrostatic discharge. Additionally, handling the device by the body or using an anti-static wrist strap can help prevent ESD damage.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal biasing and reference circuits are properly initialized before the device starts operating.
