TI recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material (TIM), and consider derating the device's power dissipation according to the ambient temperature.
The maximum allowed voltage on the input pins is 6.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the specified operating range of 4.5V to 5.5V.
Yes, the TIOS101DMWT can be used in a 3.3V system, but the output voltage will be limited to 3.3V. The device's output voltage is dependent on the input voltage, so ensure the input voltage is within the specified operating range.
The power dissipation of the TIOS101DMWT can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, consider the device's quiescent current and any losses in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TIOS101DMWT Overview

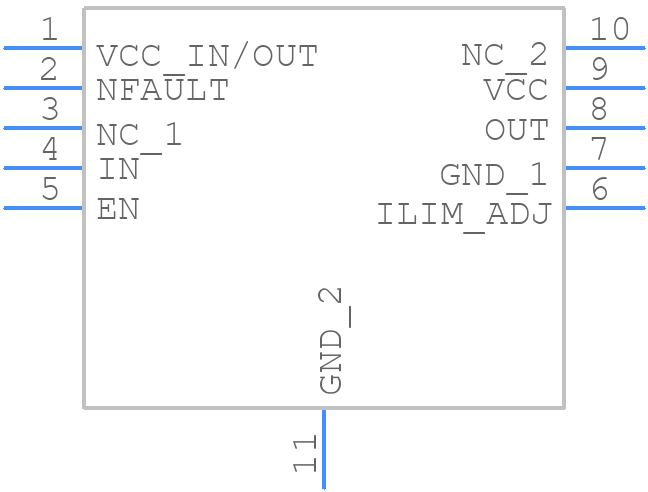

Use the download button to access the TIOS101DMWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIOS1,
or try a keyword search, such as Other Signal Circuits
