TK20A60W,S5VX(M - Toshiba

Description: Toshiba TK20A60W,S5VX(M N-channel MOSFET Transistor, 20 A, 600 V, 3-Pin TO-220SIS

Download TK20A60W,S5VX(M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

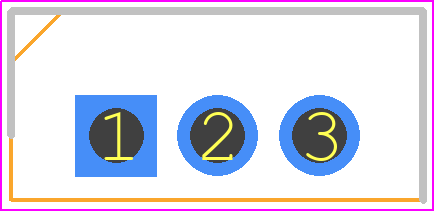

TK20A60W,S5VX(M - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220SIS-
click to zoom
3D Models
TK20A60W,S5VX(M - Toshiba  - 3D model - Transistor Outline, Vertical - TO-220SIS-
click to zoom

TK20A60W,S5VX(M Details

  • Manufacturer Part Number:

    TK20A60W,S5VX(M

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-67, TO-220SIS, 3 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.95

  • Avalanche Energy Rating (Eas):

    300 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.155 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    7 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    45 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK20A60W,S5VX(M Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TK20A60W,S5VX is -40°C to 150°C.
  • Proper cooling can be achieved by providing a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • The recommended gate resistor value for the TK20A60W,S5VX is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
  • Yes, the TK20A60W,S5VX is designed for high-reliability applications and meets the requirements of AEC-Q101, a standard for automotive-grade discrete semiconductors.
  • To protect the device from ESD, handle the device by the body or use an ESD wrist strap, and ensure that the device is stored in an anti-static bag or container.
