The maximum power dissipation of the TL070IDR is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 640mW at 25°C. For the VSSOP package, it is 440mW at 25°C. It's essential to ensure that the device does not exceed these limits to prevent overheating and potential damage.
To ensure stability in a unity-gain configuration, it's crucial to add a capacitor (typically 10nF to 100nF) between the output and the inverting input. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations. Additionally, make sure to use a low-ESR capacitor and keep the layout as compact as possible to minimize parasitic inductance.
The recommended input impedance for the TL070IDR is greater than 1kΩ. This is because the input bias current of the op-amp is relatively high, and a low input impedance can cause significant voltage drops, leading to errors and instability. Using a high input impedance helps to minimize these effects and ensures accurate operation.
While the TL070IDR can be used as a comparator in some applications, it's not the most suitable choice. The op-amp is designed for linear amplification, and its output stage is not optimized for high-speed switching. If you need a comparator, it's recommended to use a dedicated comparator IC, such as the TLV7031, which is designed for high-speed switching and has a more suitable output stage.
The TL070IDR has internal ESD protection diodes, but it's still essential to take precautions when handling the device. Use an anti-static wrist strap or mat, and ensure that your workspace is ESD-safe. When designing your PCB, include ESD protection components, such as TVS diodes or ESD arrays, to protect the op-amp and other sensitive components from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL070IDR Overview

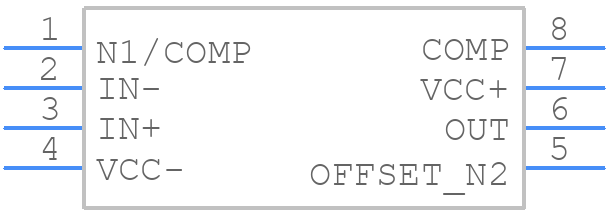

Use the download button to access the TL070IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL070,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
