A good PCB layout for the TL1451ACPWR should include a solid ground plane, wide power traces, and a thermal relief pattern under the package to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
To ensure reliable operation over the full temperature range, it's essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure adequate heat sinking. Additionally, consider using a thermistor or thermocouple to monitor the device temperature.
Using a different capacitor type or value for the output capacitor can affect the stability and performance of the regulator. TI recommends using a low-ESR capacitor with a value between 10uF to 22uF to ensure stability and optimal performance.
To handle inrush current during startup, consider adding a soft-start circuit or a current limiter to prevent excessive current draw. Additionally, ensure that the input capacitor is properly sized to handle the inrush current.
To minimize EMI and RFI, use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input lines. Additionally, ensure that the output capacitor is properly decoupled to prevent noise coupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL1451ACPWR Overview

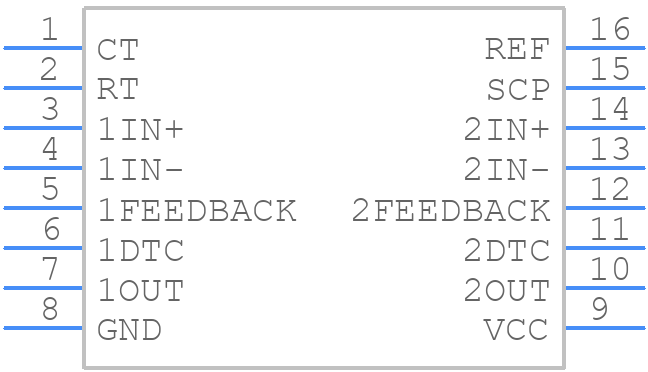

Use the download button to access the TL1451ACPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL145,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
