TL16C550CFNR - Texas Instruments

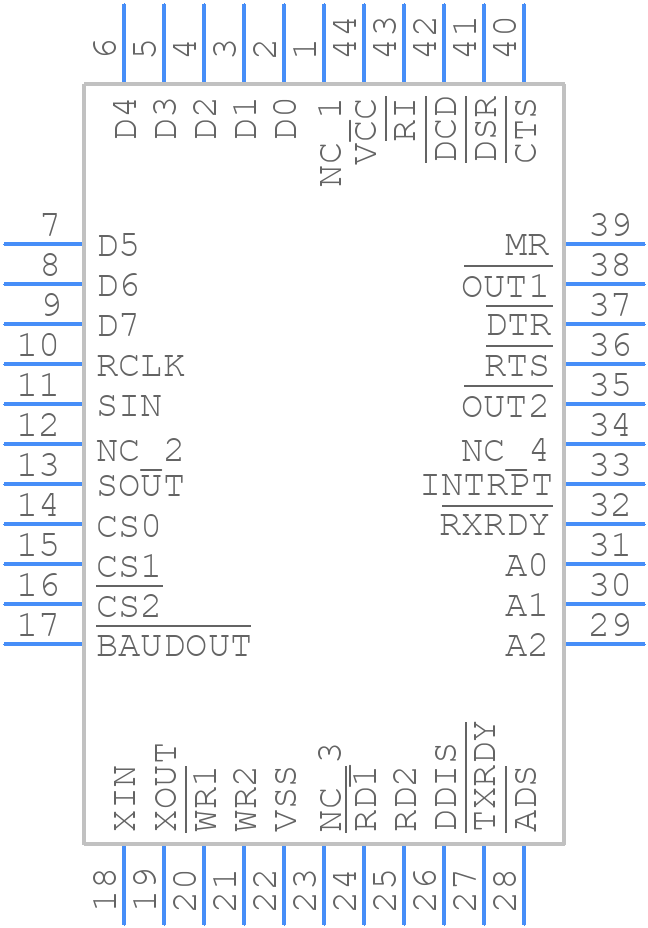

TL16C550CFNR Details

• Manufacturer Part Number:

  TL16C550CFNR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  LCC

• Package Description:

  LCC-44

• Pin Count:

  44

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO OPERATES AT 3.3V SUPPLY AT 14.9 MHZ

• Address Bus Width:

  3

• Boundary Scan:

  NO

• Clock Frequency-Max:

  16 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  0.125 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e4

• Length:

  16.585 mm

• Low Power Mode:

  NO

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (words):

  0

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  MOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16.585 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
