TL16C550DIPFBR - Texas Instruments

Description: Asynchronous Communications Element With Autoflow Control

Download TL16C550DIPFBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

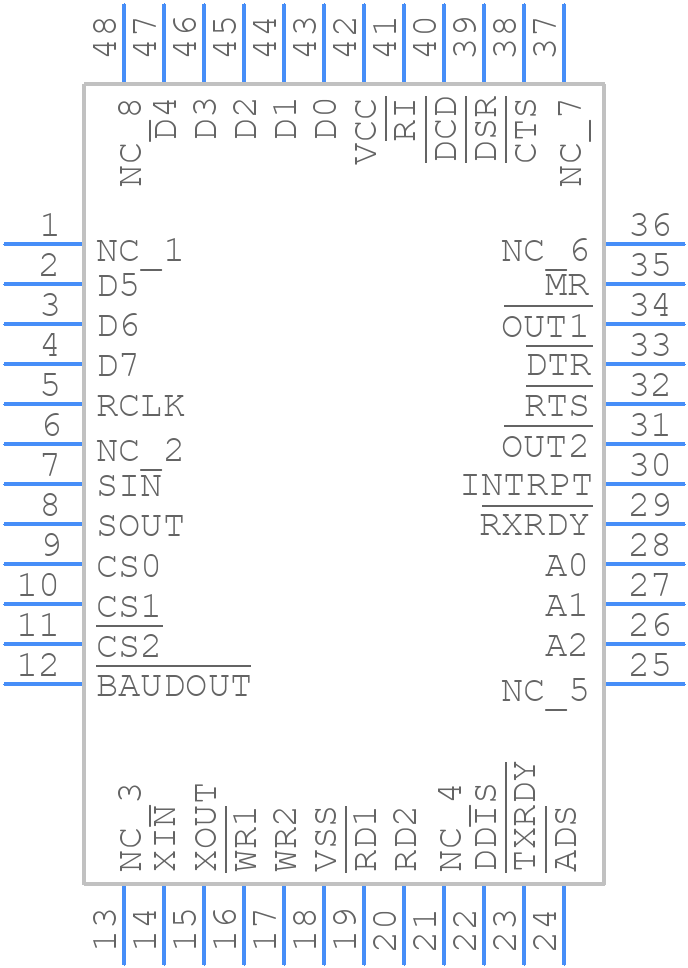

TL16C550DIPFBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL16C550DIPFBR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom
3D Models
TL16C550DIPFBR - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom

TL16C550DIPFBR Details

  • Manufacturer Part Number:

    TL16C550DIPFBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Address Bus Width:

    3

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    24 MHz

  • Communication Protocol:

    ASYNC, BIT

  • Data Transfer Rate-Max:

    0.1875 MBps

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

TL16C550DIPFBR Frequently Asked Questions (FAQs)

  • The TL16C550DIPFBR can operate up to 16.5 MHz, but the maximum frequency is dependent on the system clock and the baud rate generator configuration.
  • To configure the TL16C550DIPFBR for 9-bit data transmission, set the MCR (Modem Control Register) to enable 9-bit mode, and program the LCR (Line Control Register) to select the 9-bit data length. Additionally, ensure that the transmitter and receiver are properly configured to handle the extra bit.
  • The maximum cable length supported by the TL16C550DIPFBR is dependent on the baud rate and the type of cable used. As a general rule, the maximum cable length is approximately 100 feet (30 meters) at 9600 bps, but this can be extended using repeaters or other signal conditioning devices.
  • To handle FIFO buffer overflows and underflows, implement a flow control mechanism in your software to monitor the FIFO levels and adjust the data transmission rate accordingly. You can also use the TL16C550DIPFBR's built-in FIFO threshold interrupts to trigger flow control actions.
  • Yes, the TL16C550DIPFBR can be used in a multi-drop configuration, but it requires additional external circuitry to implement the necessary signal buffering and arbitration. Consult the datasheet and application notes for more information on multi-drop configurations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL16C550DIPFBR Overview

Use the download button to access the TL16C550DIPFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL16C, or try a keyword search, such as Serial IO/Communication Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
