Part Image

TL16C750FN - Texas Instruments

Description: TL16C750FN, Universal Asynchronous Receiver & Transmitter 1MBd, 3.3, 5V, 44-Pin, PLCC

Download ECAD Model
Schematic
symbols

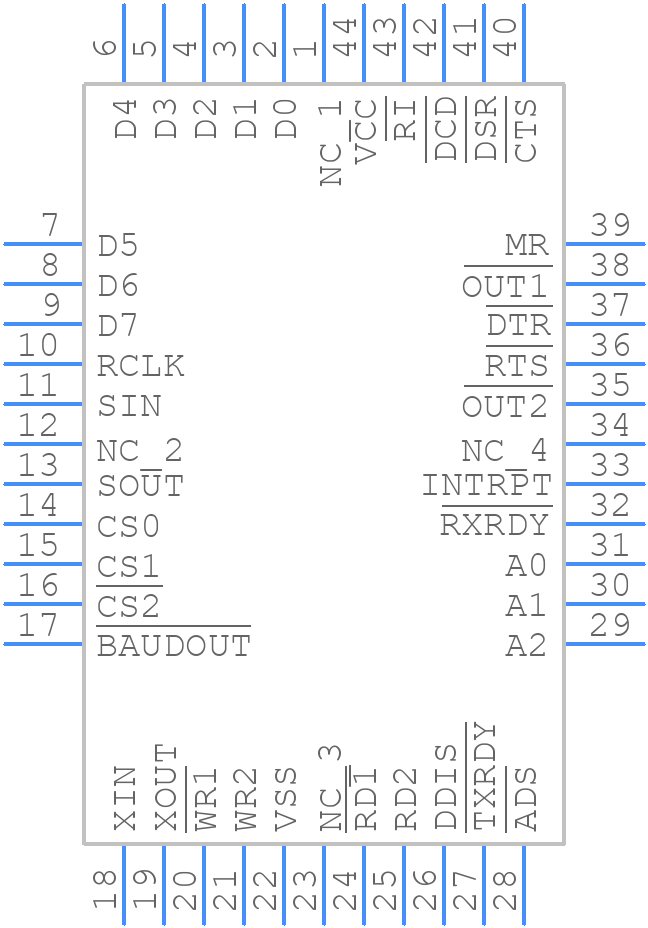

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TL16C750FN - Texas Instruments PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - FN0044A
click to zoom

3D Models

TL16C750FN - Texas Instruments  - 3D model - Plastic Leaded Chip Carrier - FN0044A
click to zoom

TL16C750FN Details

  • Manufacturer Part Number:

    TL16C750FN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LCC

  • Package Description:

    QCCJ, LDCC44,.7SQ

  • Pin Count:

    44

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.62

  • Samacsys Modified On:

    2021-08-02 16:02:48

  • Additional Feature:

    ALSO OPERATES AT 3.3V MINIMUM SUPPLY AT 14MHZ

  • Address Bus Width:

    3

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    16 MHz

  • Communication Protocol:

    ASYNC, BIT

  • Data Transfer Rate-Max:

    0.125 MBps

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQCC-J44

  • JESD-609 Code:

    e4

  • Length:

    16.585 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    3.3/5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Subcategory:

    Serial IO/Communication Controllers

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    16.585 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
