Texas Instruments recommends a compact layout with short traces, and placing the device close to the power supply bypass capacitors. Additionally, separating the analog and digital grounds and using a star-ground configuration can help minimize noise.
The TL3474ACN has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Also, follow the recommended PCB layout and thermal design guidelines from Texas Instruments.
Operating the TL3474ACN beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the specified voltage and temperature ranges to maintain its performance and longevity.
To troubleshoot issues with the TL3474ACN, start by verifying the power supply voltage, decoupling, and layout. Check for any signs of oscillation, such as ringing on the output or excessive current consumption. Use an oscilloscope to analyze the output waveform and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Yes, the TL3474ACN can be susceptible to electromagnetic interference (EMI). To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and ensure good grounding and decoupling. Follow the recommended PCB layout and design guidelines from Texas Instruments to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL3474ACN Overview

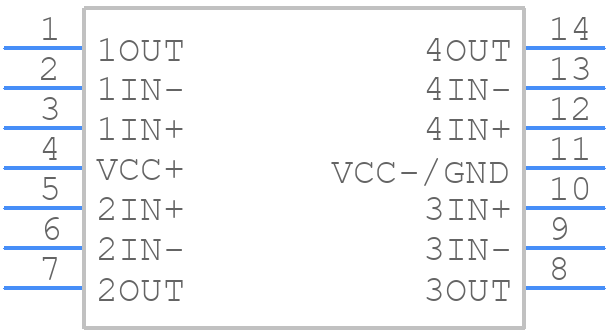

Use the download button to access the TL3474ACN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL347,
or try a keyword search, such as Operational Amplifiers
