Texas Instruments provides a recommended PCB layout in the TL3474ACPWR datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability. If oscillations occur, try adding a small resistor (e.g., 1Ω) in series with the output capacitor.
The TL3474ACPWR has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 3.5V to 15V. Applying voltages above 15V may reduce the device's reliability and lifespan.
The TL3474ACPWR is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management, such as using a heat sink or reducing the ambient temperature, to maintain reliable operation.
The output voltage ripple and noise can be estimated using the equations provided in the TL3474ACPWR datasheet. Additionally, consider using a post-regulator filter, such as an LC filter, to further reduce the output voltage ripple and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL3474ACPWR Overview

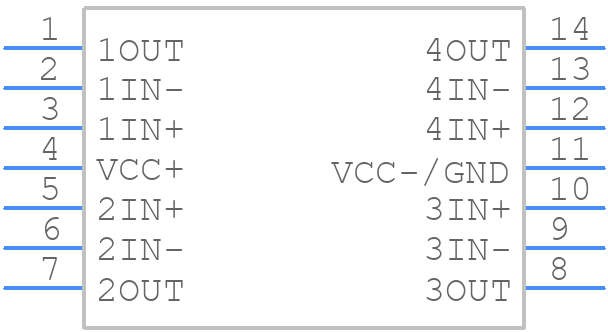

Use the download button to access the TL3474ACPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL347,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
