TL431BFDT-QR - Nexperia

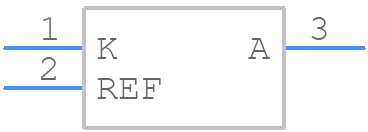

TL431BFDT-QR Details

• Manufacturer Part Number:

  TL431BFDT-QR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOT-23, 3 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nexperia

• YTEOL:

  7

• Additional Feature:

  OUTPUT VOLTAGE IS ADJUSTABLE FROM 2.495V TO 36V

• Analog IC - Other Type:

  TWO TERMINAL VOLTAGE REFERENCE

• JESD-30 Code:

  R-PDSO-G3

• Length:

  2.9 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.15 A

• Output Voltage-Max:

  2.507 V

• Output Voltage-Min:

  2.483 V

• Output Voltage-Nom:

  2.495 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP

• Package Equivalence Code:

  TO-236

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.1 mm

• Surface Mount:

  YES

• Temp Coef of Voltage-Max:

  85.1703406 ppm/°C

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Trim/Adjustable Output:

  YES

• Voltage Tolerance-Max:

  0.5%

• Width:

  1.3 mm
