TL604CP - Texas Instruments

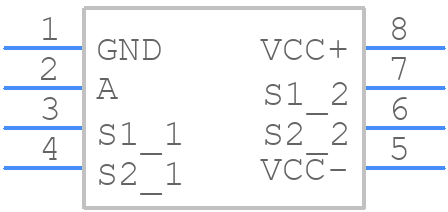

TL604CP Details

• Manufacturer Part Number:

  TL604CP

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DIP-8

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-PDIP-T8

• Length:

  9.81 mm

• Neg Supply Voltage-Max (Vsup):

  -25 V

• Neg Supply Voltage-Min (Vsup):

  -5 V

• Neg Supply Voltage-Nom (Vsup):

  -20 V

• Normal Position:

  NO/NC

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• On-state Resistance-Max (Ron):

  600 Ω

• Operating Temperature-Max:

  70 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max (Isup):

  10 mA

• Supply Voltage-Max (Vsup):

  25 V

• Supply Voltage-Min (Vsup):

  5 V

• Supply Voltage-Nom (Vsup):

  10 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  500 ns

• Switch-on Time-Max:

  150 ns

• Switching:

  MAKE-BEFORE-BREAK

• Technology:

  BIMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.62 mm
