TL7726CP - Texas Instruments

Description: TL7726CP, Clamping Circuit, 8-Pin, PDIP

Download TL7726CP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

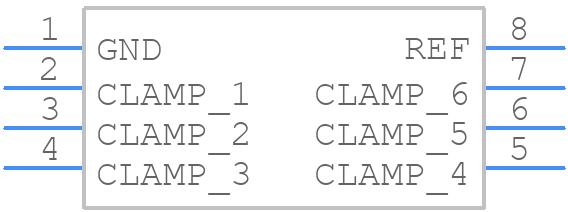

TL7726CP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL7726CP - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
TL7726CP - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

TL7726CP Details

  • Manufacturer Part Number:

    TL7726CP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TL7726CP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TL7726CP is 4.5V to 40V, although it can tolerate up to 45V for short periods.
  • To ensure the output voltage is stable and regulated, make sure to use a suitable output capacitor (e.g., 10uF to 100uF) and a minimum load current of 1mA. Also, ensure the input voltage is within the recommended range and the device is properly decoupled.
  • The maximum output current of the TL7726CP is 1A, but it's recommended to limit the output current to 500mA for reliable operation and to prevent overheating.
  • To protect the TL7726CP from overheating, ensure good thermal conduction by using a heat sink or a thermally conductive PCB material. Also, keep the device away from high-temperature sources and ensure good airflow around the device.
  • Yes, the TL7726CP is suitable for high-reliability and automotive applications due to its high reliability, low dropout voltage, and ability to operate over a wide temperature range (-40°C to 125°C). However, it's essential to follow proper design and testing guidelines to ensure the device meets the specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL7726CP Overview

Use the download button to access the TL7726CP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL772, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
