TL7726IP - Texas Instruments

Description: TL7726IP, Clamping Circuit, 8-Pin, PDIP

Download TL7726IP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

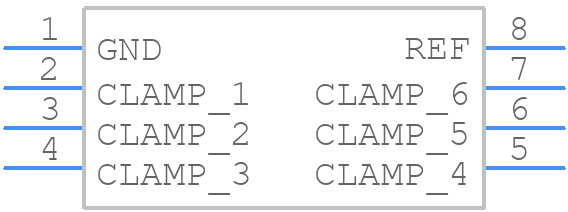

TL7726IP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL7726IP - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - p(r-pdip-t8)
click to zoom
3D Models
TL7726IP - Texas Instruments - 3D model - Dual-In-Line Packages - p(r-pdip-t8)
click to zoom

TL7726IP Details

  • Manufacturer Part Number:

    TL7726IP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TL7726IP Frequently Asked Questions (FAQs)

  • The TL7726IP can operate from -40°C to 125°C, making it suitable for a wide range of applications.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended range of 2.7V to 5.5V.
  • To minimize noise and EMI, place the TL7726IP close to the power supply, and use a ground plane to reduce radiation. Keep the input and output traces short and away from each other, and use a shielded cable for the output if necessary.
  • Yes, the TL7726IP is qualified for use in high-reliability applications, including aerospace and automotive. It meets the requirements of AEC-Q100 and is manufactured using a high-reliability process.
  • To troubleshoot issues with the TL7726IP, check the input voltage, output load, and decoupling capacitors. Verify that the device is properly biased and that the input and output traces are properly routed. Use an oscilloscope to measure the output voltage and check for noise or oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL7726IP Overview

Use the download button to access the TL7726IP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL772, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
